2000/3000 SHEET FINISHERS (B700/B701) August, 2006
1-70

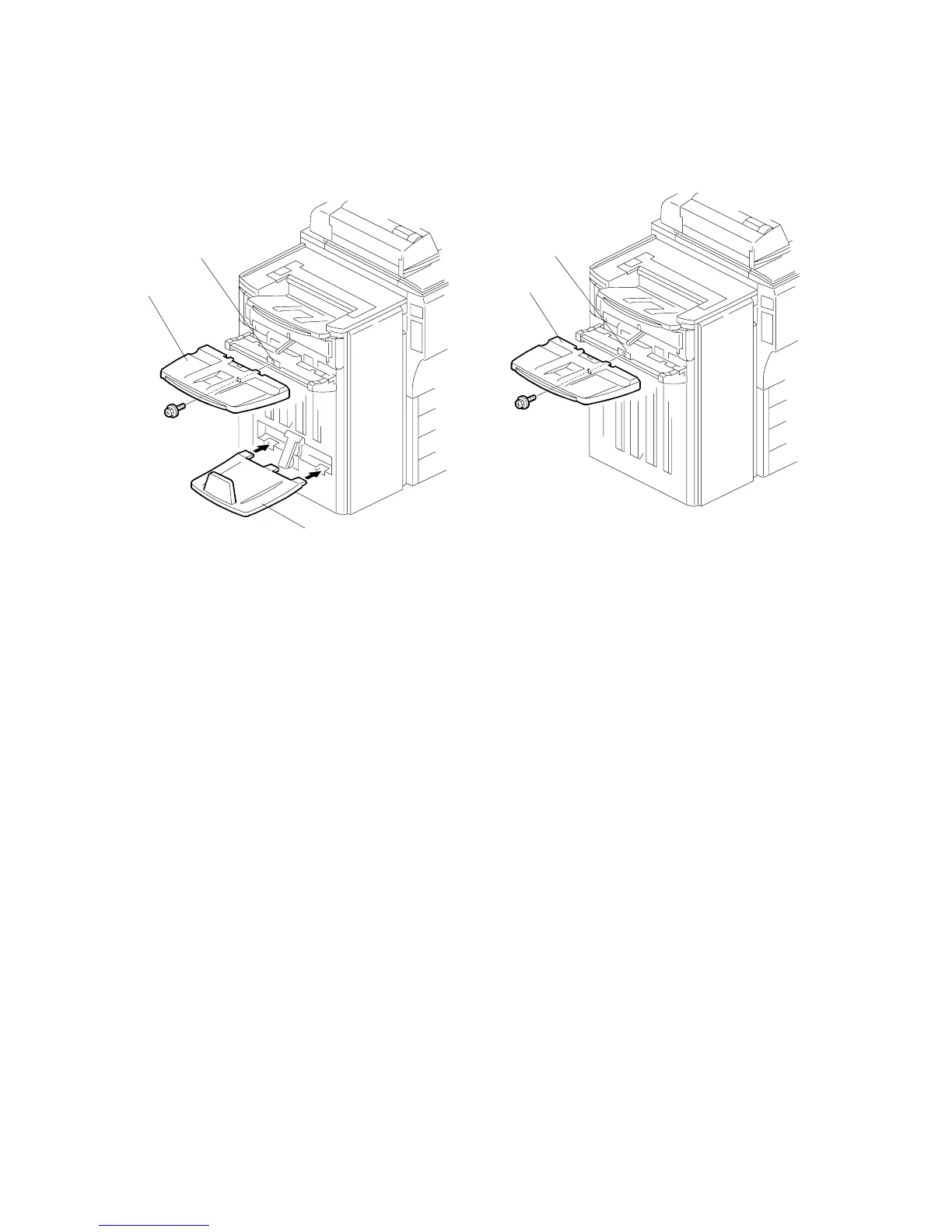

Attaching the Trays
B700
1. Attach the upper output tray [A] ( x 1, M3 x 6).
NOTE: Make sure that the metal plate [B] is on the top of the tray.
2. Attach the lower output tray [C].
B701
1. Attach the upper output tray [A].
NOTE: Make sure that the metal plate [B] is on the top of the tray.
B700I208.WMF
B701I208.WMF
B700
B701
[A]
[B]
[C]
[A]
[B]
