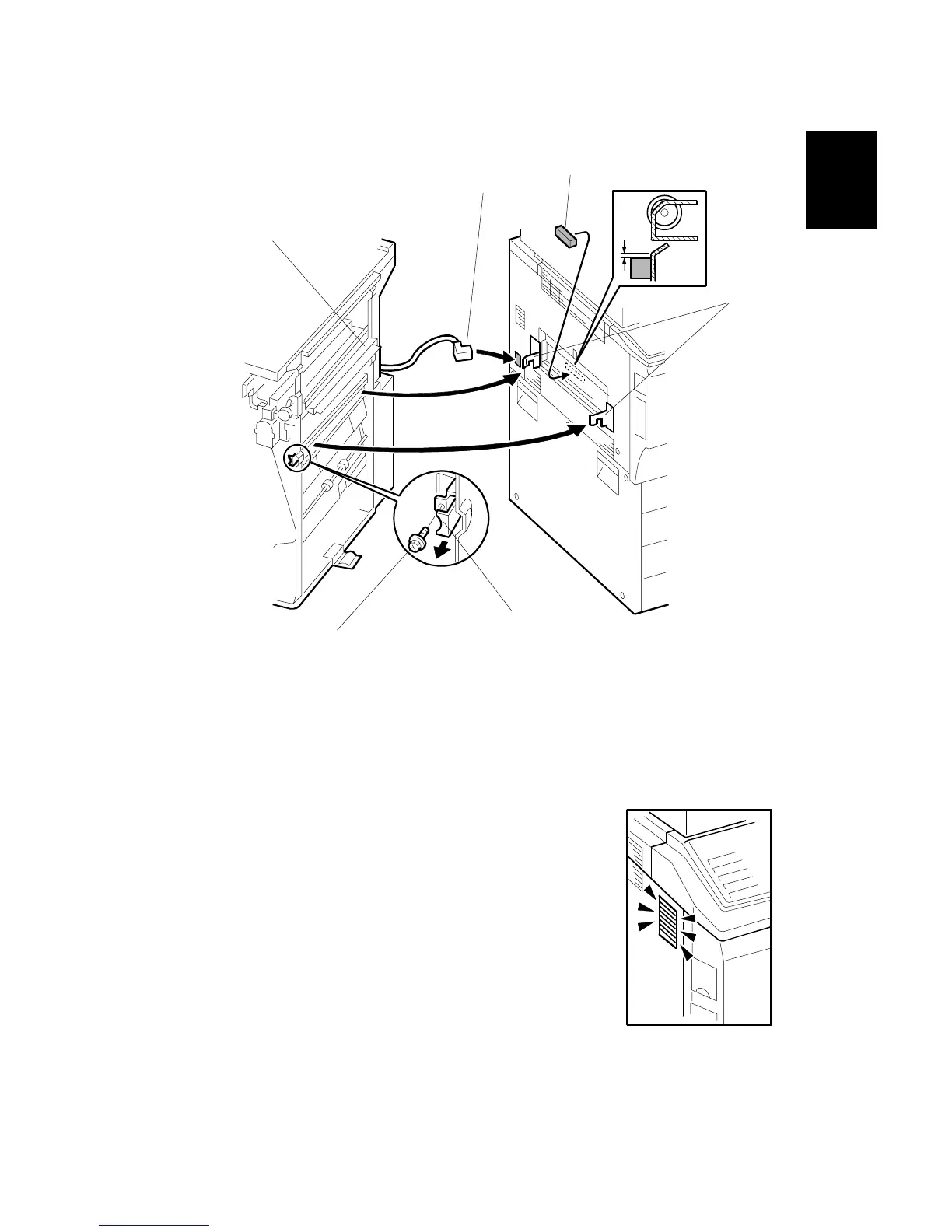

4. Remove the screw [A] to release the lock lever [B] ( x 1).
5. Slowly push the finisher against the side of the machine until the brackets [D]
go into their slots. If you do this too quickly, you will bend and cause damage to
the paper-entrance guide plates [C].
6. Attach and tighten the screw removed in Step 5.
7. Connect finisher connector [E] to the main frame.
8. Attach the gasket seal [F] as shown.
Important! Check the duct
on the left side of the
machine. Make sure that the sponge does not block this
duct.
