Toshiba e-STUDIO4500c Service Manual

COPIER E-STUDIO4500C/5500C August, 2006
1-22
Reattach the Face Plate

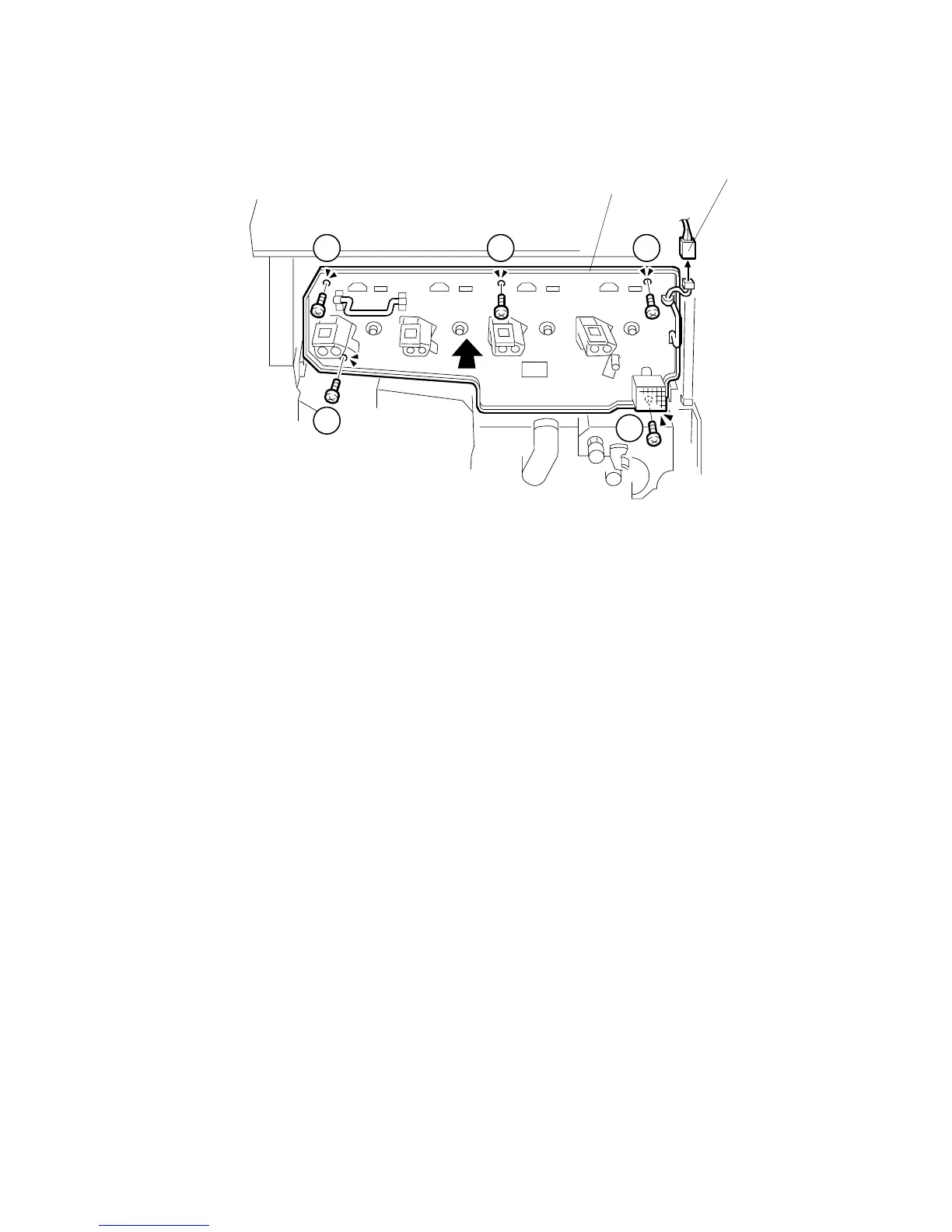

1. Attach the face plate [A] with the screws in the sequence shown by the
numbers above ( x 5).
Important:
• Do not tighten these screws too much.
• Make sure the fan connector [B] is not pinched behind the face plate.
2. Connect the fan again [B] ( x 1).
142
5
3
B132I716.WMF
[A]
[B]
