August 2006 PUNCH UNIT B531
1-95
Installation
1.12 PUNCH UNIT B531
The Punch Unit B531 is installed in the 3000-Sheet Finisher B706.
1.12.1 ACCESSORIES
Check the accessories and their quantities against this list.
Description
Qty
1. Punch unit................................................................................. 1
2. Punch Waste Hopper................................................................ 1
3. Sensor Arm and Sensor............................................................ 1
4. Spacer (2 mm) .......................................................................... 1
5. Spacer (1 mm) .......................................................................... 2
6. Spring ....................................................................................... 1
7. Step Screw (large) (M4 x 10).................................................... 1
8. Tapping Screw (M4 x 10).......................................................... 2
9. Step Screw (small) (M3 x 4)...................................................... 1
10. Machine Screw, Washer (M4 x 6)............................................. 1
11. Knob ......................................................................................... 1

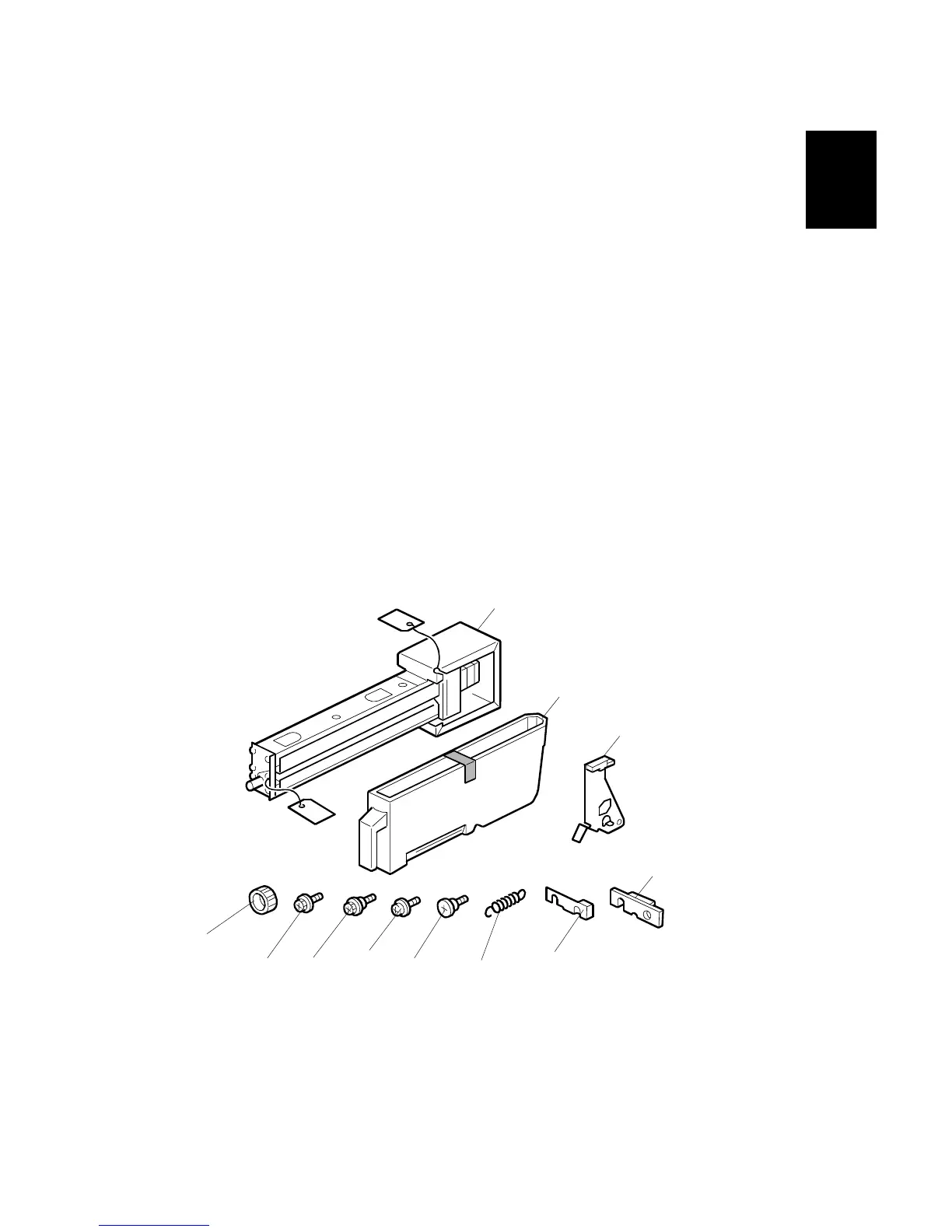

B531I001.WMF
10
11
1
2
3
4
5
6
7
8
9
