September 2006 Replacement and Adjustment
B706-29
Peripherals
3.10.2 JOGGER UNIT PCB
1. Remove the jogger unit from the finisher. ( 3.10.1)

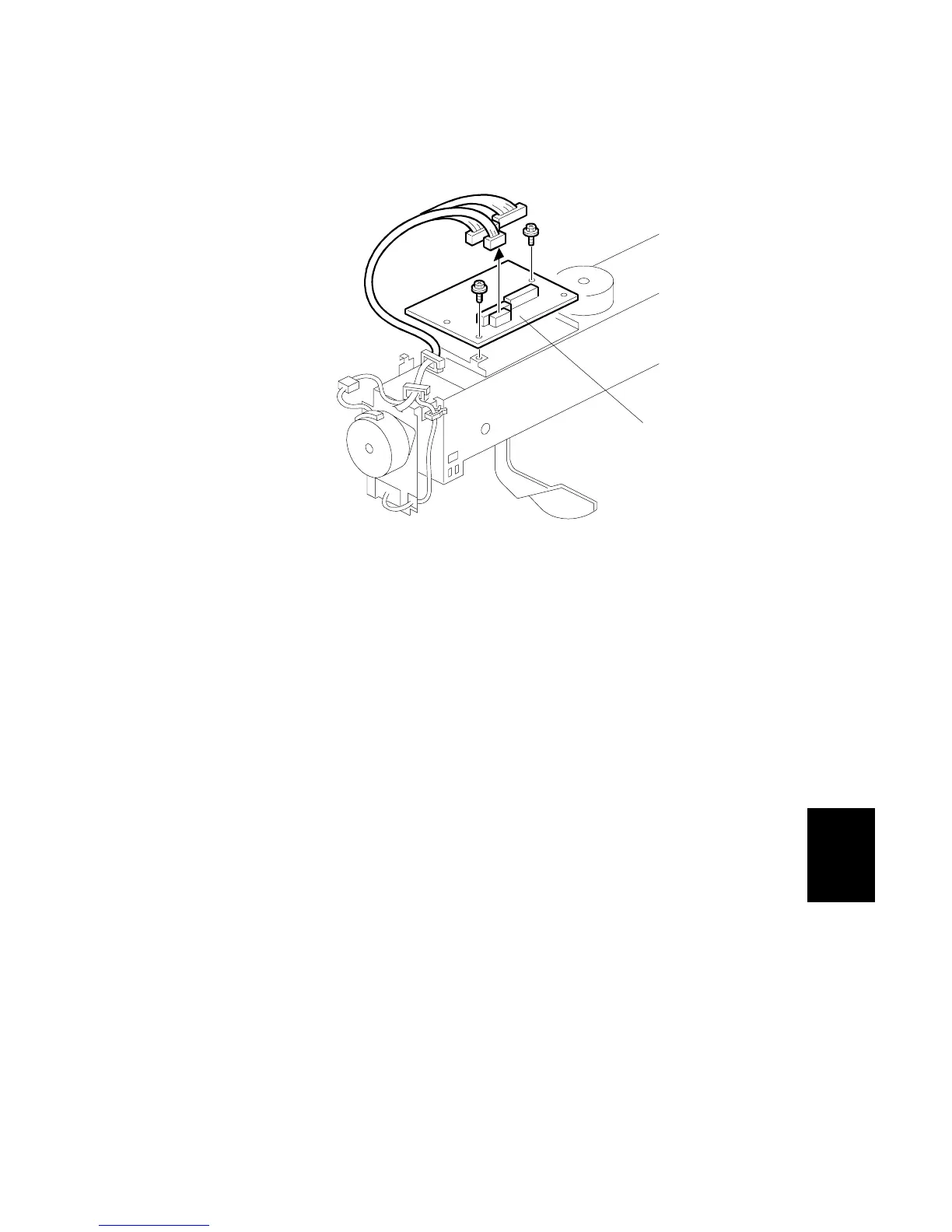

2. Remove the jogger unit control PCB [A] ( x 2, x 3)
B513R001.WMF
[A]
06/09
