August, 2006 ARDF
3-157
3.18.2 ORIGINAL FEED UNIT
[A]: Open the feed cover.
[B]: Remove the snap fitting.
[C]: Pull toward you slightly to disconnect the rear end of the shaft
[D]: Disconnect the front end of the shaft.

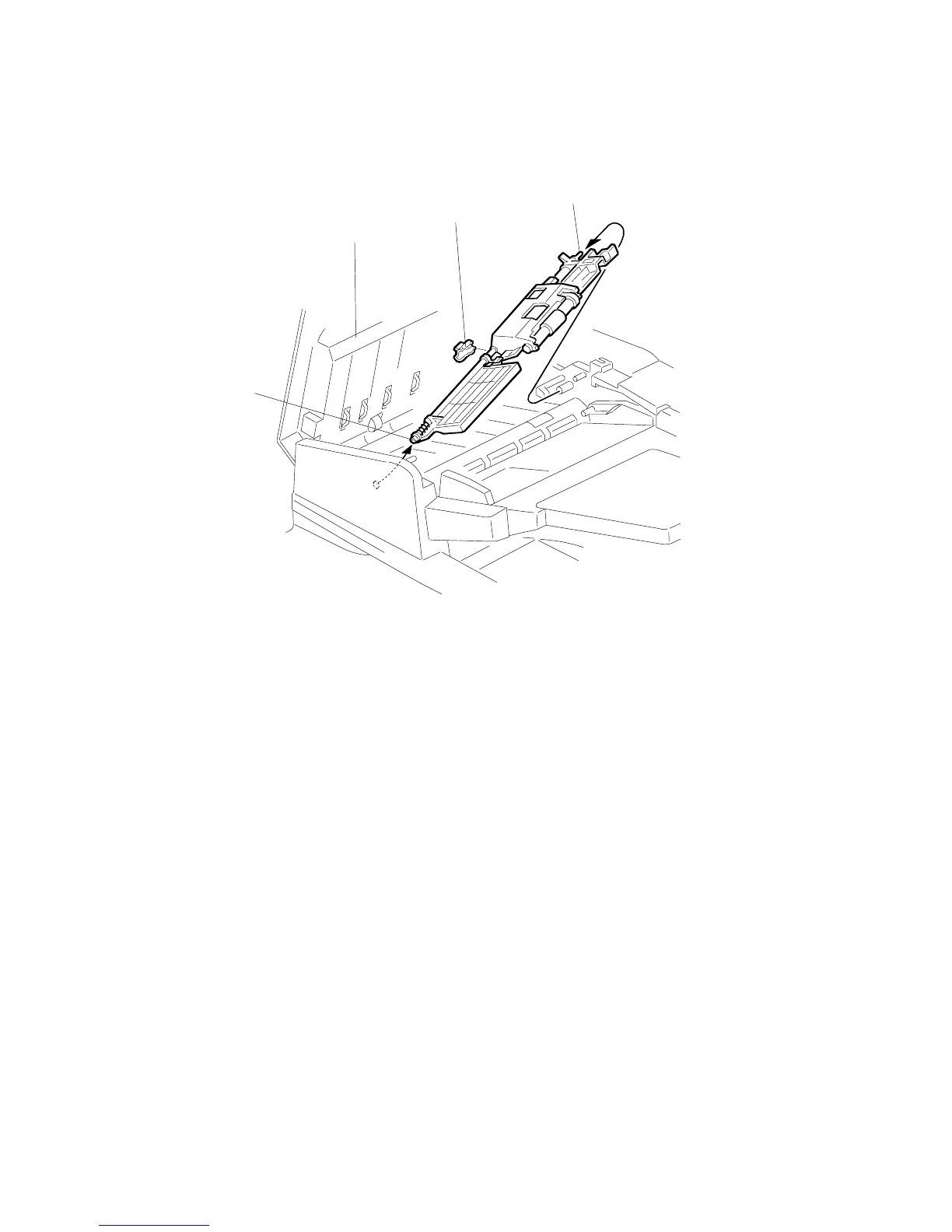

B132R105.WMF
[A]
[B]
[C]
[D]
