PAPER TRANSFER UNIT August, 2006

3-72

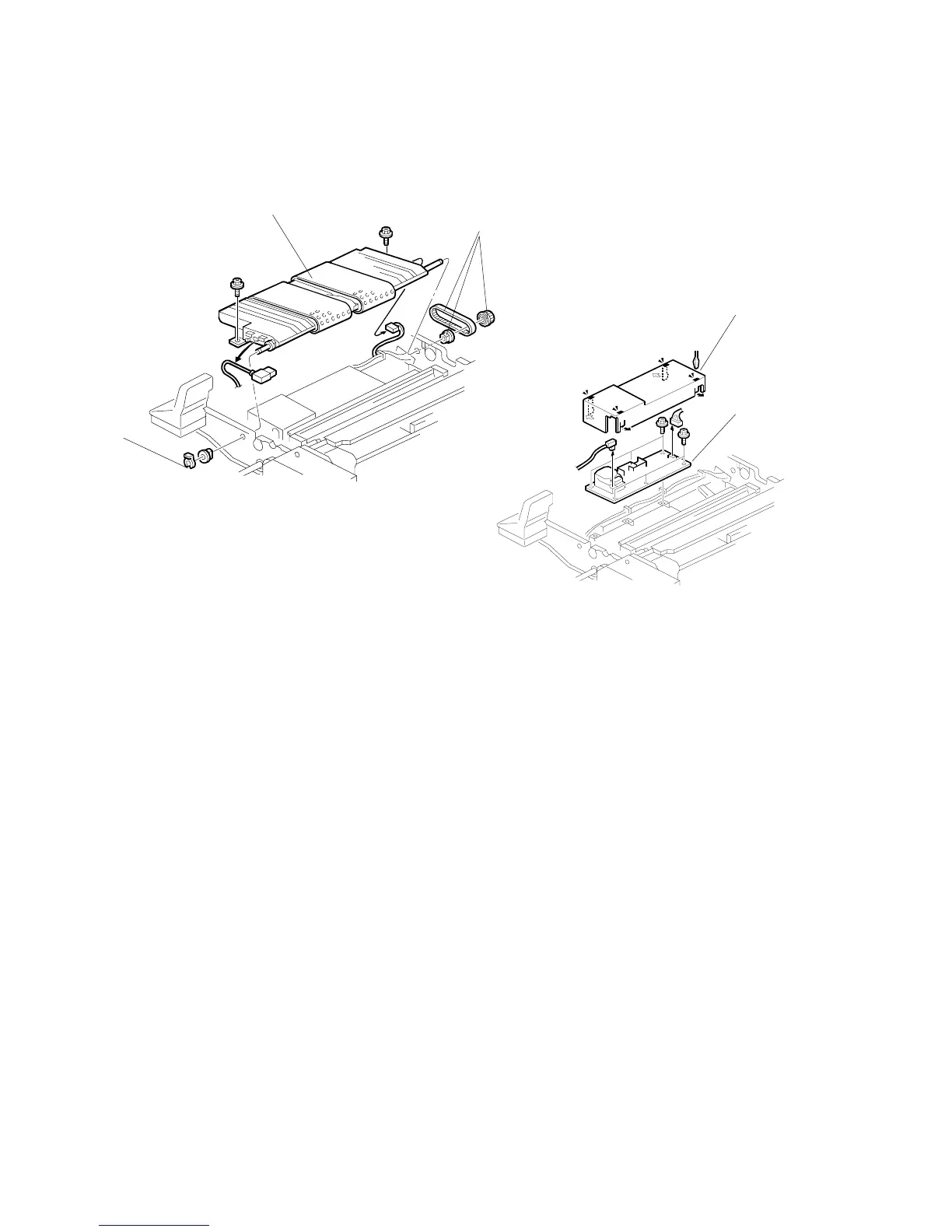

3.7.8 PAPER TRANSPORT BELT, SEPARATION POWER PACK

• Pull out the drawer unit (3.2.9)

Remove:

• Paper transport unit lever and cover (3.7.3)

• Fusing unit (3.9.2)

[A]: Timing belt x1, Gear x1, Shaft bearing x1

[B]: Clip ring x1, Shaft bearing

[C]: Paper transport belt ( x2,  x2)

[D]: Cover

[E]: Separation power pack ( x6,  x2)

Reinstallation

• Do the forced MUSIC adjustment with SP 2111 001 ( 3.19.4).

B132R308.WMF

B132R308A.WMF

[B]

[C]

[A]

[D]

[E]
