TANDEM TRAY (TRAY 1) August, 2006
3-112
3.11 TANDEM TRAY (TRAY 1)
3.11.1 TANDEM TRAY

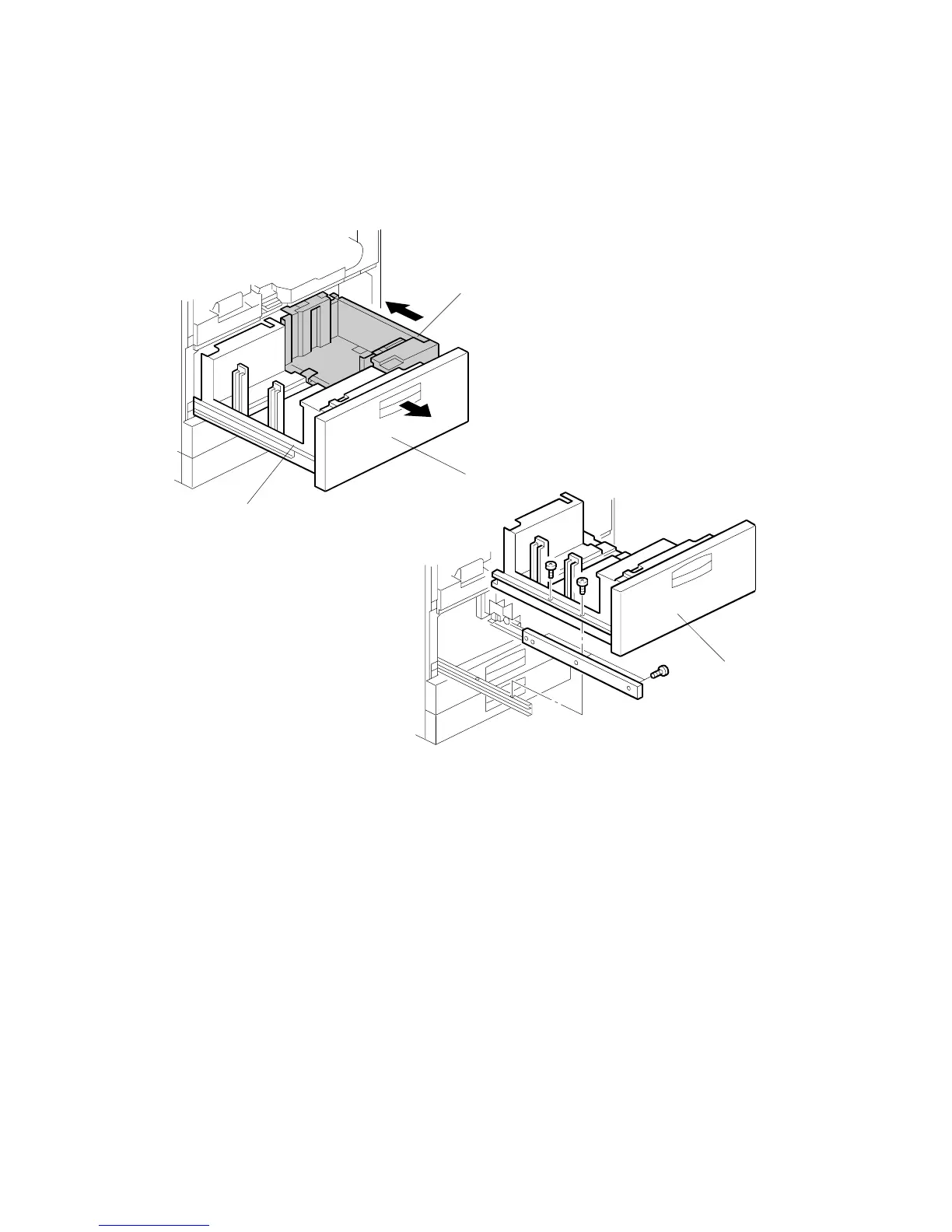

1. Open the front door.
2. Pull out the tandem tray drawer [A] completely to separate the left [B] and right
[C] sides of the tandem tray.
3. Remove the left tandem tray [D] ( x 5).
B140R820.WMF
B140R821.WMF
[A]
[B]
[C]
[D]
