BOOKLET STAPLER, BOOKLET STAPLER MOTOR August 2006
B700-22
1.16 BOOKLET STAPLER, BOOKLET STAPLER MOTOR
1.16.1 BOOKLET STAPLER
• Open the front door.
• Pull out the stapler unit.

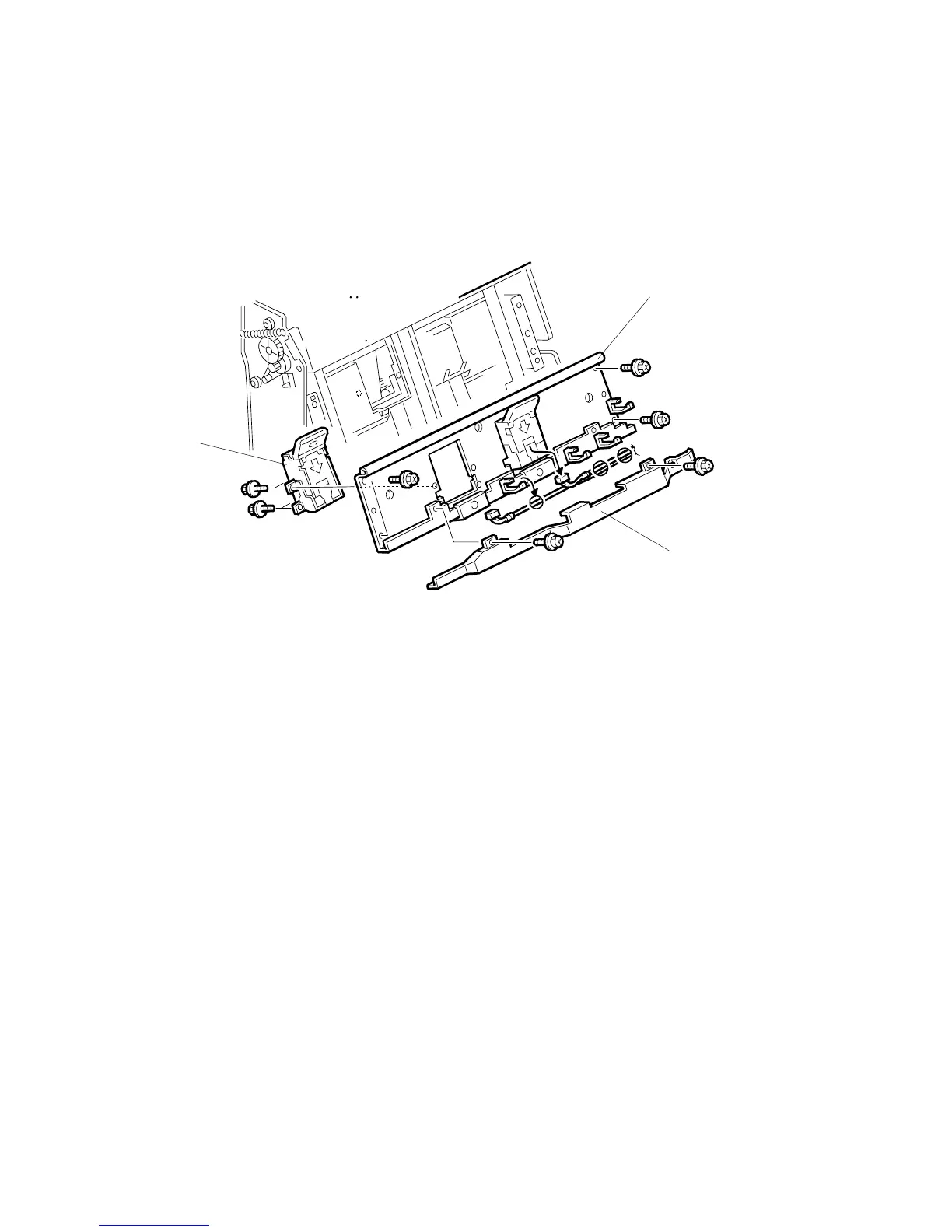

[A]: Harness cover ( x2)
[B]: Booklet stapler support stay ( x4, x2, x4)
[C]: Stapler ( x4)
B700R903.WMF
[A]
[B]
[C]
