Toshiba e-STUDIO4500c Service Manual

ARDF August, 2006
6-28
6.4.11 ARDF JAM DETECTION

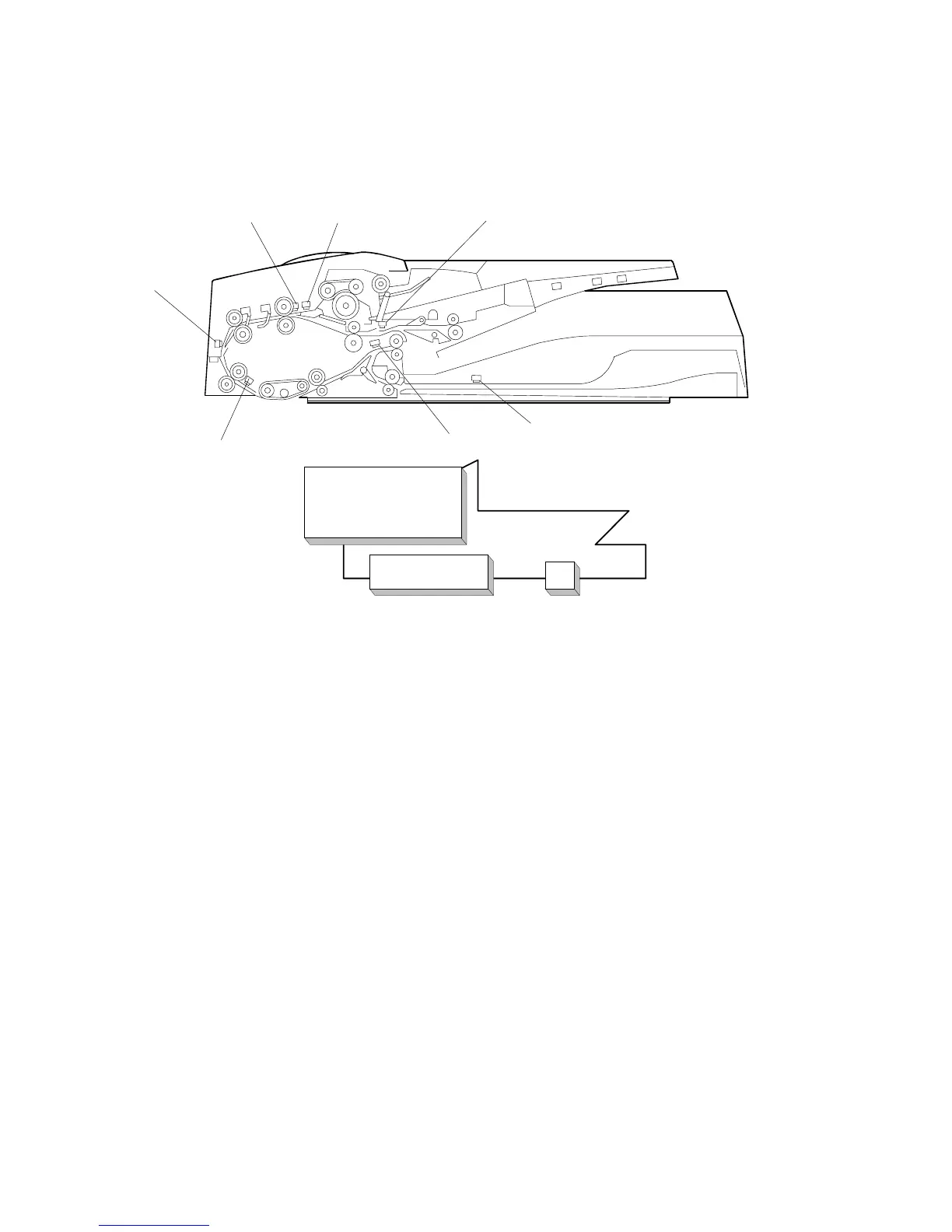

Jam Detection Sensor Layout
Seven sensors detect jams in the original path at P1, P2, and P3 (These notations
appear on the operation panel display when a jam occurs):
[A]: Upper Inverter Sensor
[B]: Separation Sensor
[C]: Skew Correction Sensor
[D]: Interval Sensor
[E]: Registration Sensor
[F]: Exit Sensor
[G]: Lower Inverter Sensor
B132D119.WMF
P1
P2
P3
B132D972.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
