3.2.3 LEFT COVERS
• If a finisher is installed, disconnect it. Then remove the front and rear finisher
joint brackets.

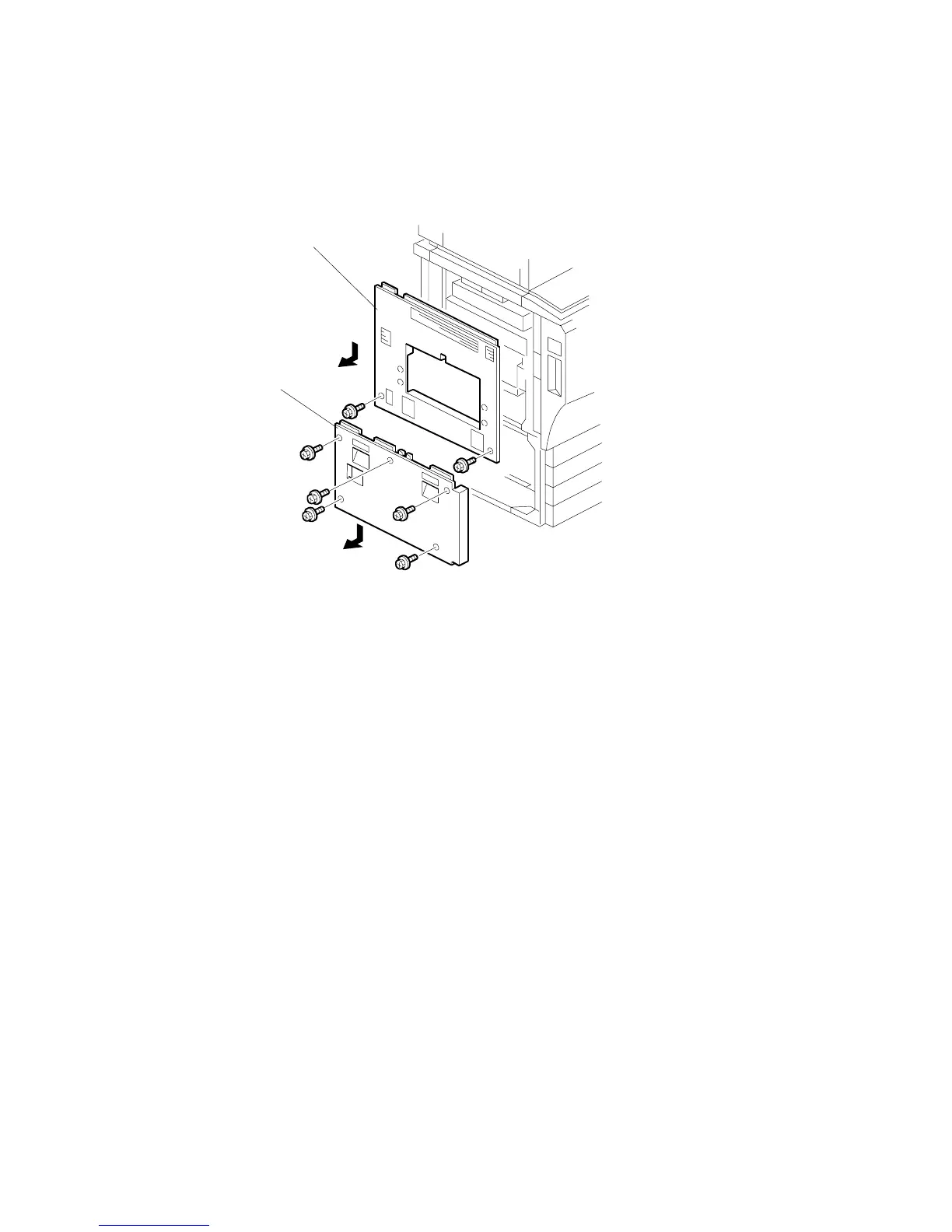

Remove:
[A]: Left upper cover ( x2)
[B]: Left lower cover ( x5)
Reinstallation
• Make sure all the cover tabs are inserted correctly before you fasten the screws.
B132R702.WMF
[A]
[B]
