PAPER LIFT September 2006
B473-12
2.3 PAPER LIFT

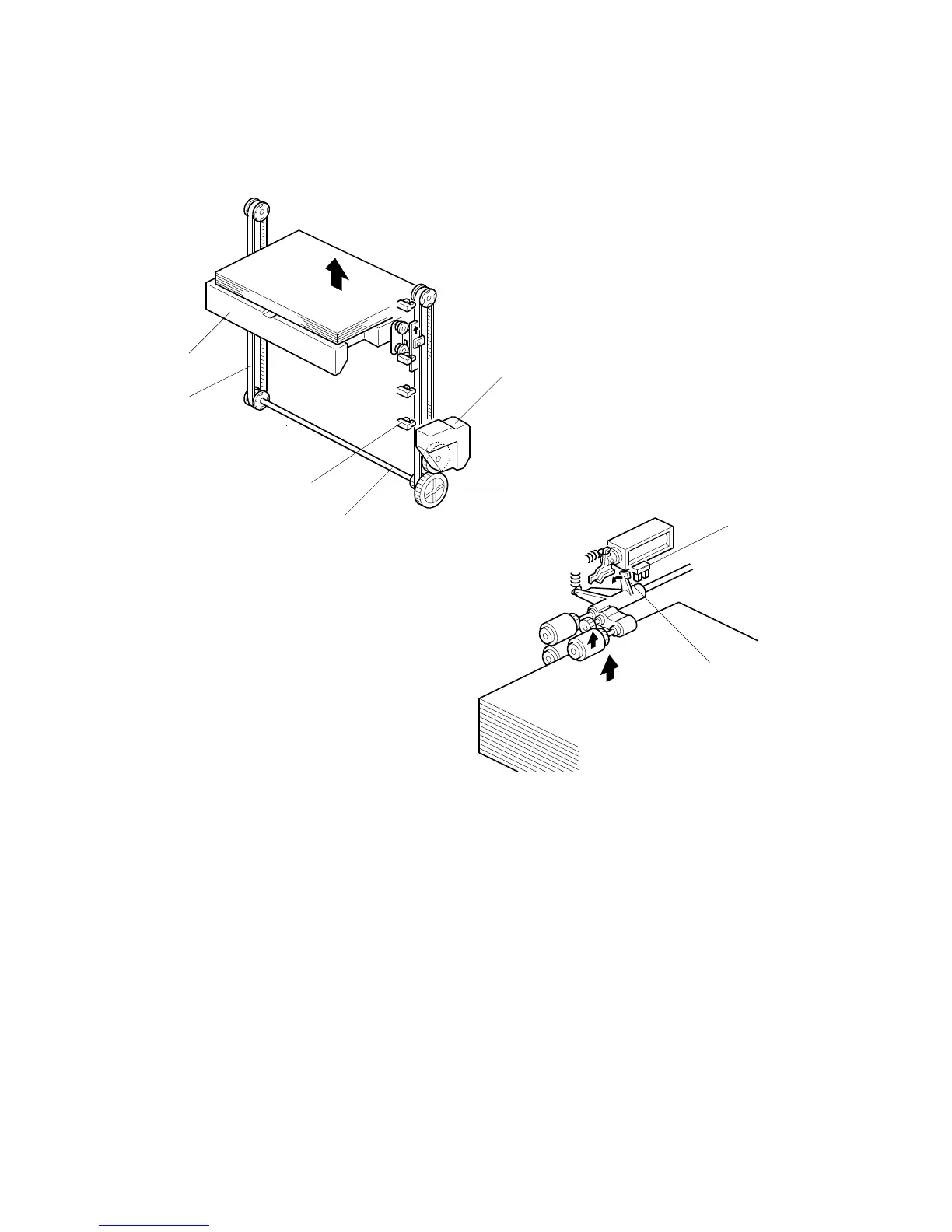

Tray motor [A] Î Gear [B] Î Shaft [C] Î Tray belts [D] raise and lower the paper
tray [E].
After paper is set in the LCT and the upper cover is closed, if the paper height
sensor [F] is not activated, the tray motor lowers the tray and stops. When the
paper height sensor activates, the tray motor lifts the tray.
After several sheets have been fed, the paper level lowers, the actuator [G]
activates the lift sensor [H], and switches on the motor again. The motor raises
stack until the actuator de-activates the lift sensor.
This cycle repeats to maintain the correct height of the stack until the end of the job.
