6.12.2 PUNCH WASTE COLLECTION

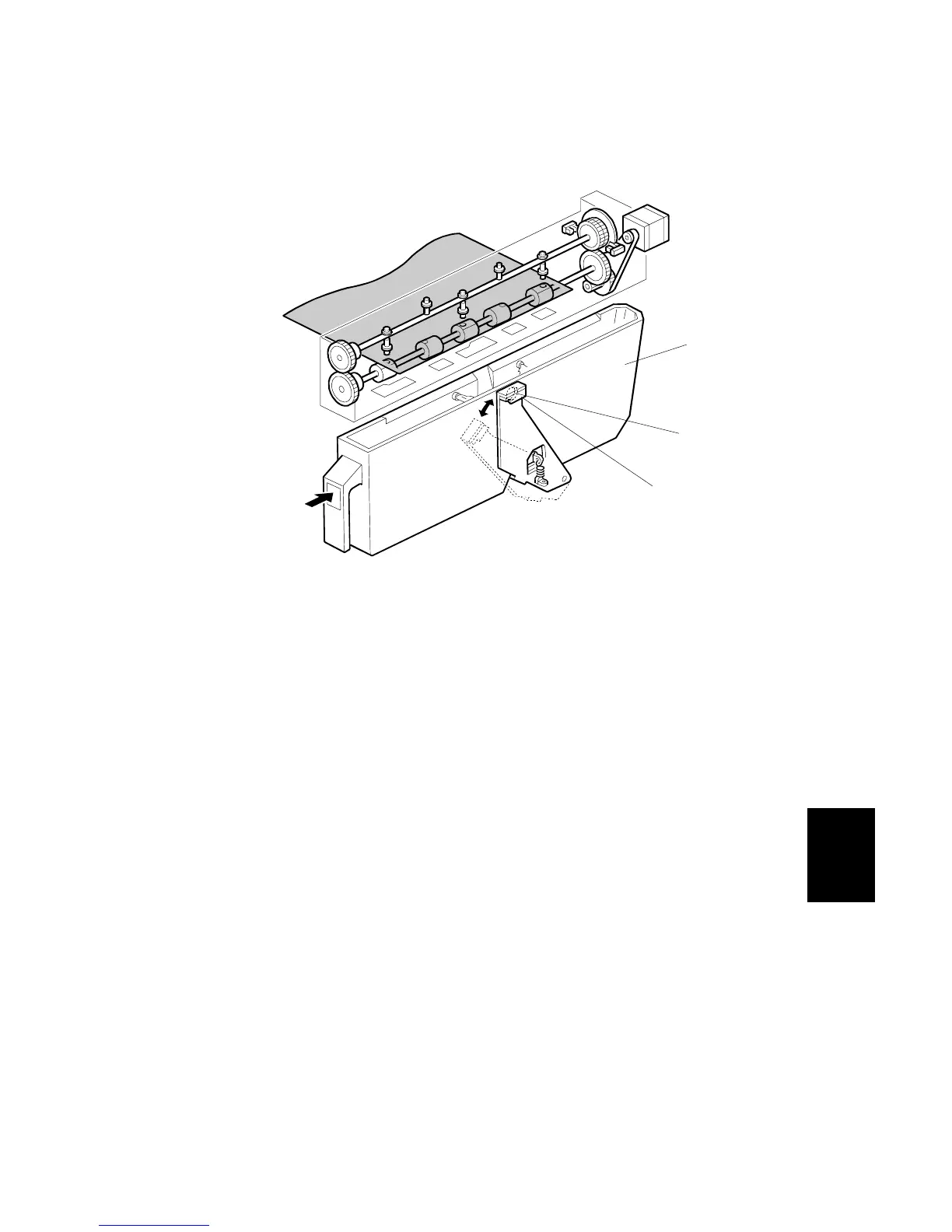

Punch waste is collected in the punch waste hopper [A] positioned under the punch
unit.
When the level of the punch waste in the hopper rises as far as the hole [B] in the
hopper, the punch waste sensor [C] turns on, stops the job, and triggers a
message on the operation to indicate that the hopper is full and must be removed
and emptied.
The job resumes automatically after the hopper is emptied and returned to the
finisher.
The punch waste hopper sensor also functions as the hopper set sensor. When the
hopper is not in the finisher, or if it is not inserted completely, the spring loaded
sensor arm rotates up and to the right with the punch waste sensor away from the
hole in the hopper holder and a message is displayed. The message in this case is
the same as the hopper full message.
