PAPER FEED August 2006
6-102
6.13 PAPER FEED

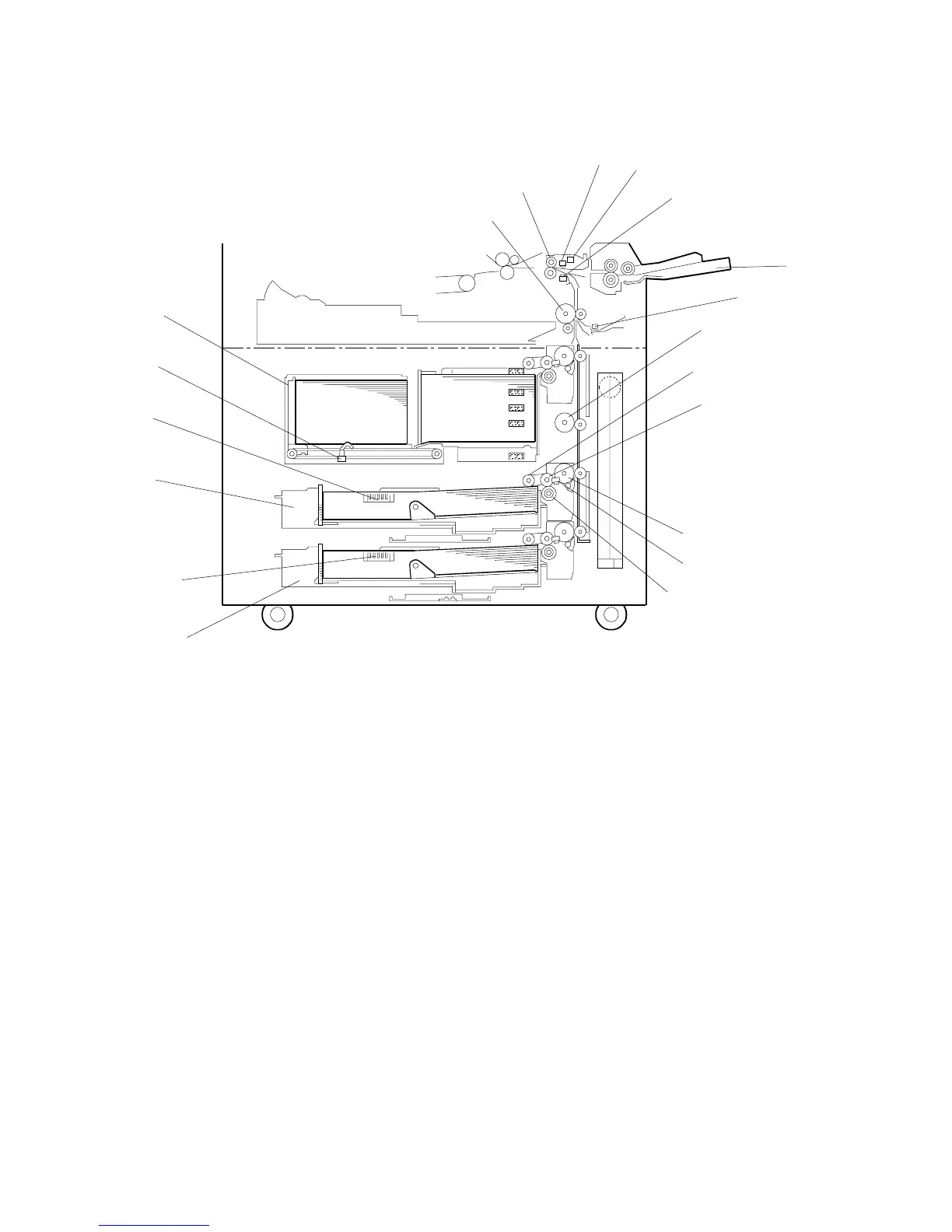

6.13.1 OVERVIEW
1. Tandem Tray (Tray 1)
2. Left Tray Paper Sensor
3. Paper Size Switch (Tray 2)
4. Universal Tray (Tray 2)
5. Paper Size Switch (Tray 3)
6. Universal Tray (Tray 3)
7. Upper Relay Roller
8. Registration Roller
9. Double-Feed detection Sensor
10. Registration Sensor
11. Double Feed Detection LED
12. Bypass Tray
13. Relay Sensor
14. Lower Relay Roller
15. Pick Up Roller
16. Feed Roller
17. Grip Roller
18. Paper Feed Sensor
19. Separation Roller
NOTE: Items 15 to 19 use the standard FRR feed system, which is used for Trays
1, 2, and 3. This machine uses motor ON/OFF time (not clutches) to
control paper feed.
B132D600A.WMF
1
2
3
4
5
11
12
14
15
16
13
17
6
9
10
7
8
18
19
