Toshiba e-STUDIO4500c - Bypass Feed and Separation; Bypass Tray

PAPER FEED August 2006
6-122
6.13.10 BYPASS TRAY
Bypass Feed and Separation

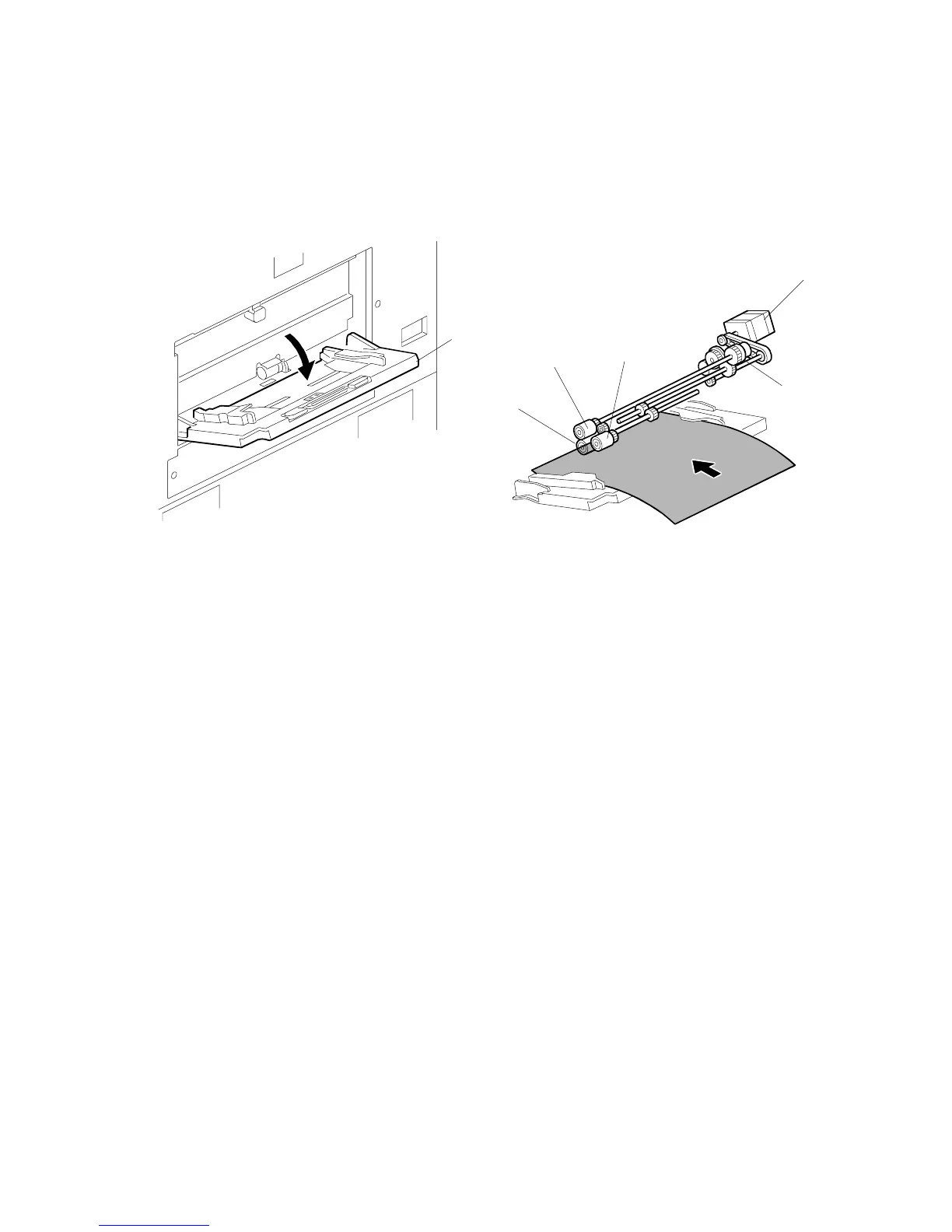

The bypass tray [A] opens from the right side of the machine.
Bypass Tray Operation Sequence:
Bypass feed motor [B]Æ Bypass feed clutch [C]Æ Pick-up roller [D] Æ Pick-up
solenoid (see the next page)Æ Feed roller [E] and separation roller [F]
The bypass tray uses the standard FRR feed system. ( Handling Paper> Paper
Feed Methods> Forward and Reverse Roller (FRR) or Bypass Feed Tray)
NOTE: The direction of feed in the bypass tray is opposite from that of the other
paper trays, so their parts (with the exception of the separation roller) are
not interchangeable.
B132D954.WMF B132D603.WMF
[A]
[B]
[C]
[D]
[E]
[F]
