Toshiba e-STUDIO4500c Service Manual

PAPER FEED August 2006
6-110
6.13.5 PAPER NEAR-END AND PAPER END – TRAYS 2 AND 3
The paper near end sensor [A] is in the lift motor assembly. It can detect four levels
of remaining paper.

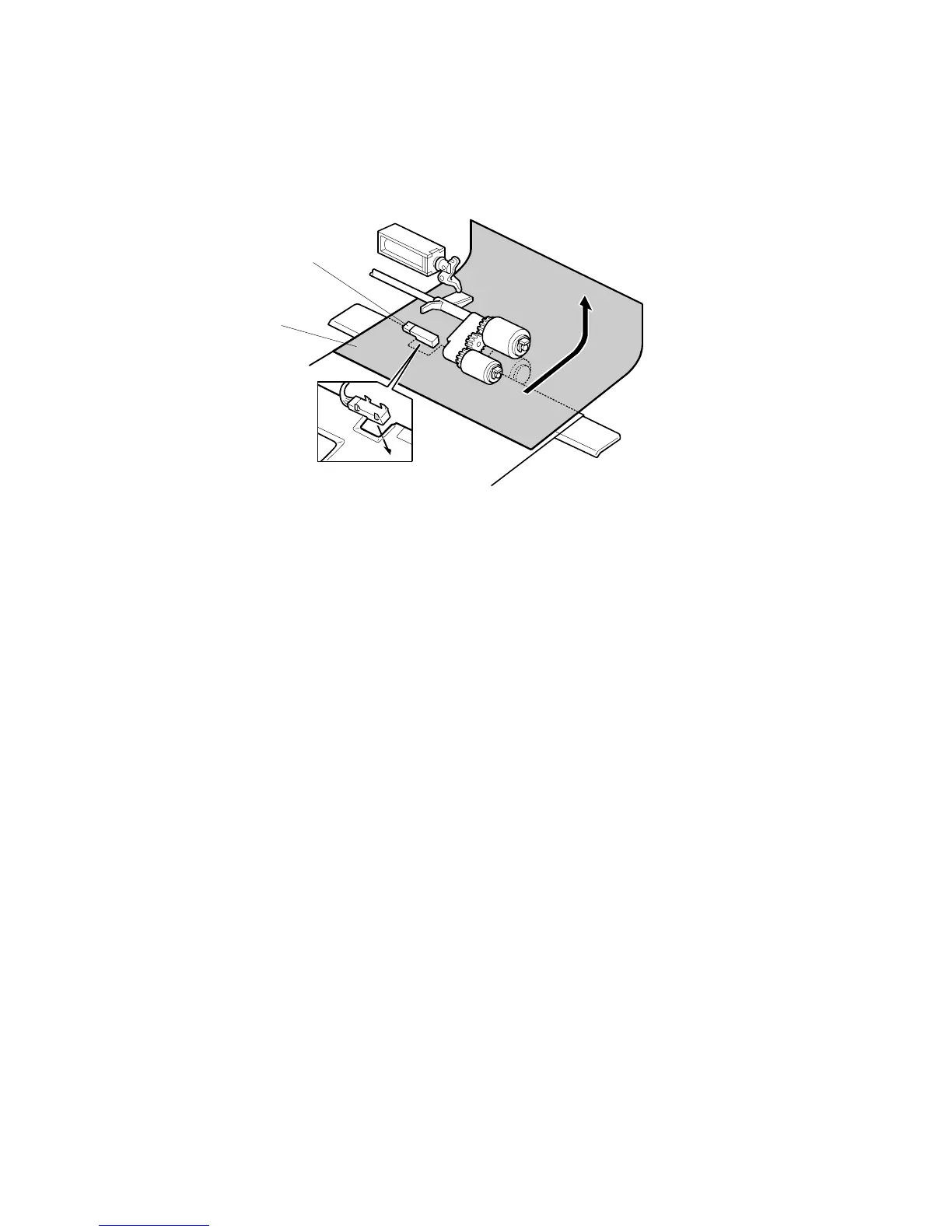

The paper end sensor [A] receives light reflected from the paper below [B] until the
last sheet has been fed. Then, paper end is detected.
B132D940.WMF
[A]
[B]
