FUSING UNIT August, 2006
3-88

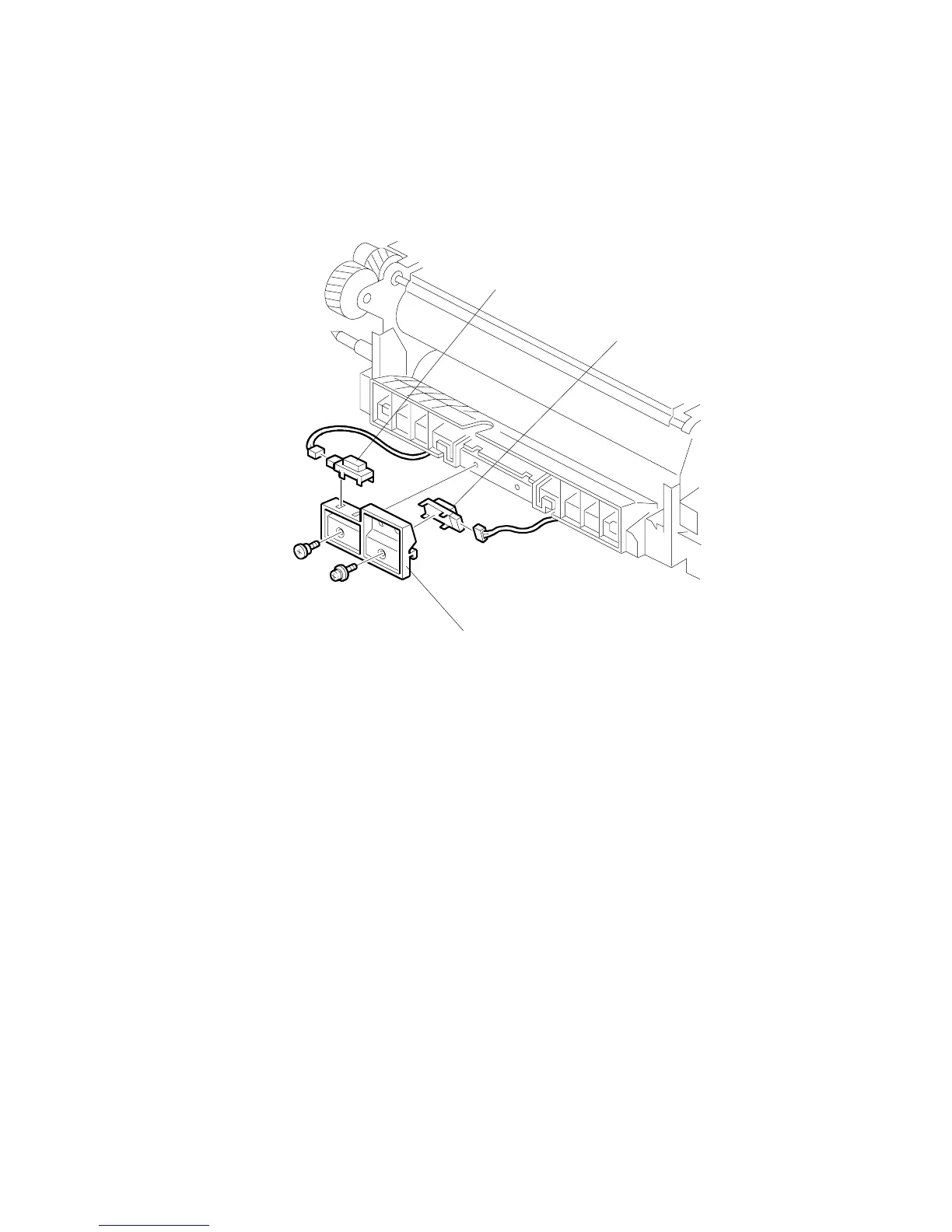

3.9.3 FUSING EXIT SENSOR, ACCORDION JAM SENSOR
Remove:
• Fusing unit (3.9.2)
[A]: Sensor bracket ( x2)
[B]: Fusing exit sensor ( x1)
[C]: Accordion jam sensor ( x1)
B132R405.WMF
[A]
[B]
[C]
