Toshiba e-STUDIO4500c Service Manual

MFP CONTROLLER OPTIONS August 2006
1-132
1.15.9 COPY CONNECTOR TYPE 3260 (B328)
1. Turn the machine off and unplug the machine before starting the following
procedure.
2. Remove the cover [A] of Slot B ( x 2).
3. Install the Copy Connector Board B328 [B] in Slot B and attach it with the
screws.
4. Remove the rear upper cover. (See 3.3.6)

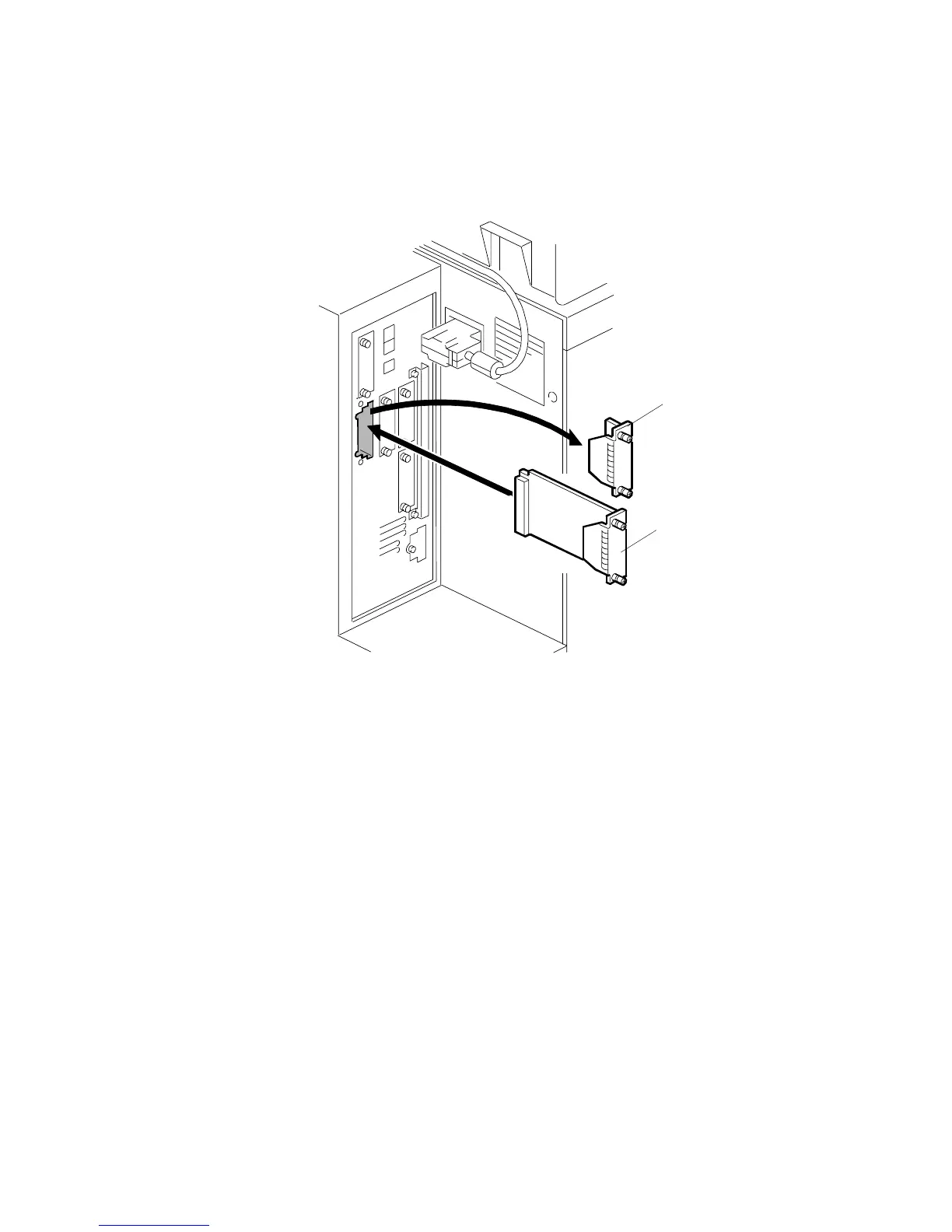

B737I904.WMF
[A]
[B]
