August 2006 JUNCTION GATES

B700-37

Peripherals

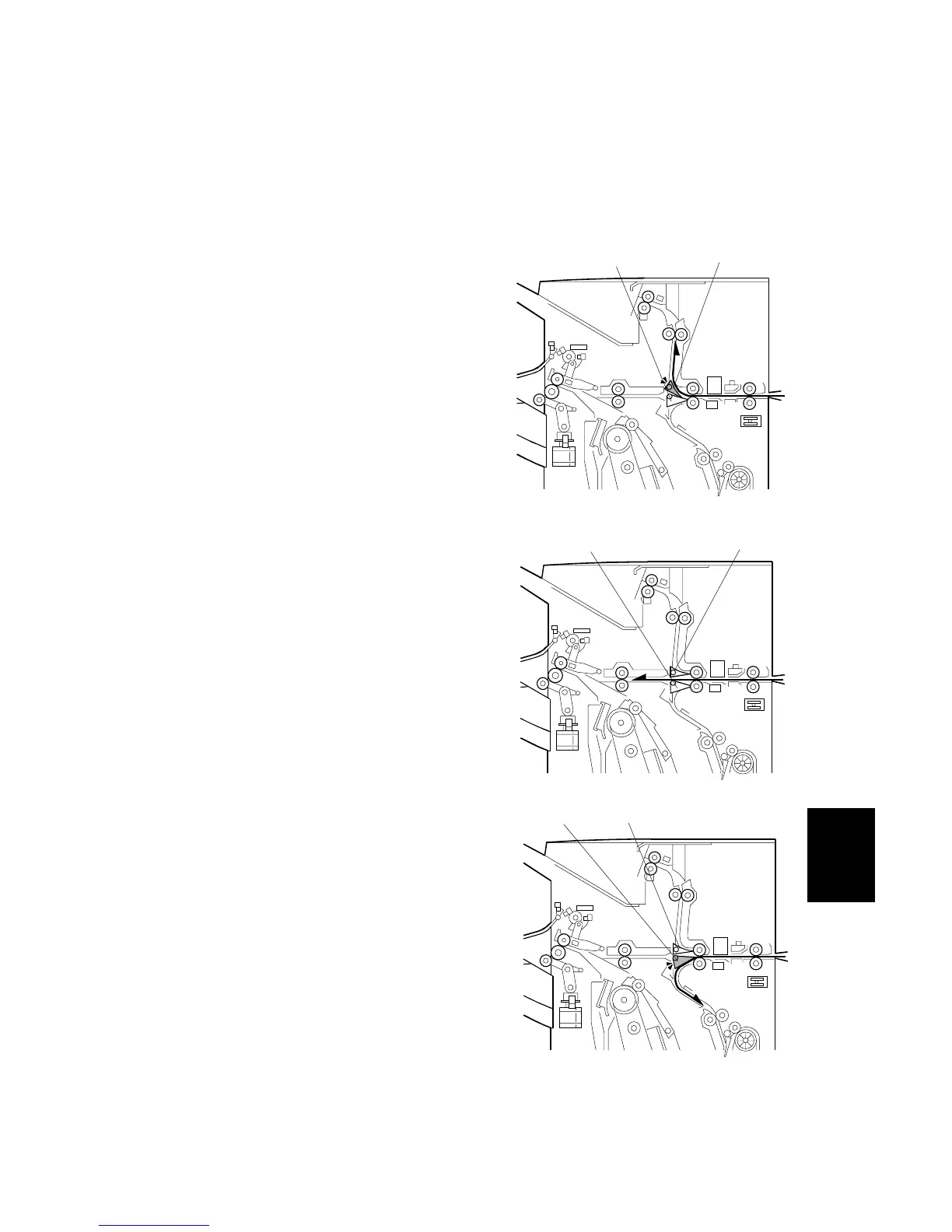

2.4 JUNCTION GATES

The positions of the proof tray and staple tray junction gates determine the

direction of paper feed after paper enters the finisher.

Proof Mode

[A]: Proof tray junction gate opens.

[B]: Staple tray junction gate remains

closed.

The proof tray junction gate directs paper

to the proof tray above.

Shift Mode

[A]: Proof tray junction gate remains

closed.

[B]: Staple tray junction gate remains

closed.

With both junction gates closed, the paper

goes to the upper tray.

Staple Mode

[A]: Proof tray junction gate remains

closed.

[B]: Staple tray junction gate opens

The staple tray junction gate directs the

paper to the staple tray below for jogging

and stapling.

B700D301.WMF

B700D302.WMF

B700D303.WMF

[A]

[B]

[A]

[B]

[A]

[B]
