Toshiba e-STUDIO4500c Service Manual

CORNER STAPLING August 2006
B700-48
2.8.3 CORNER STAPLING

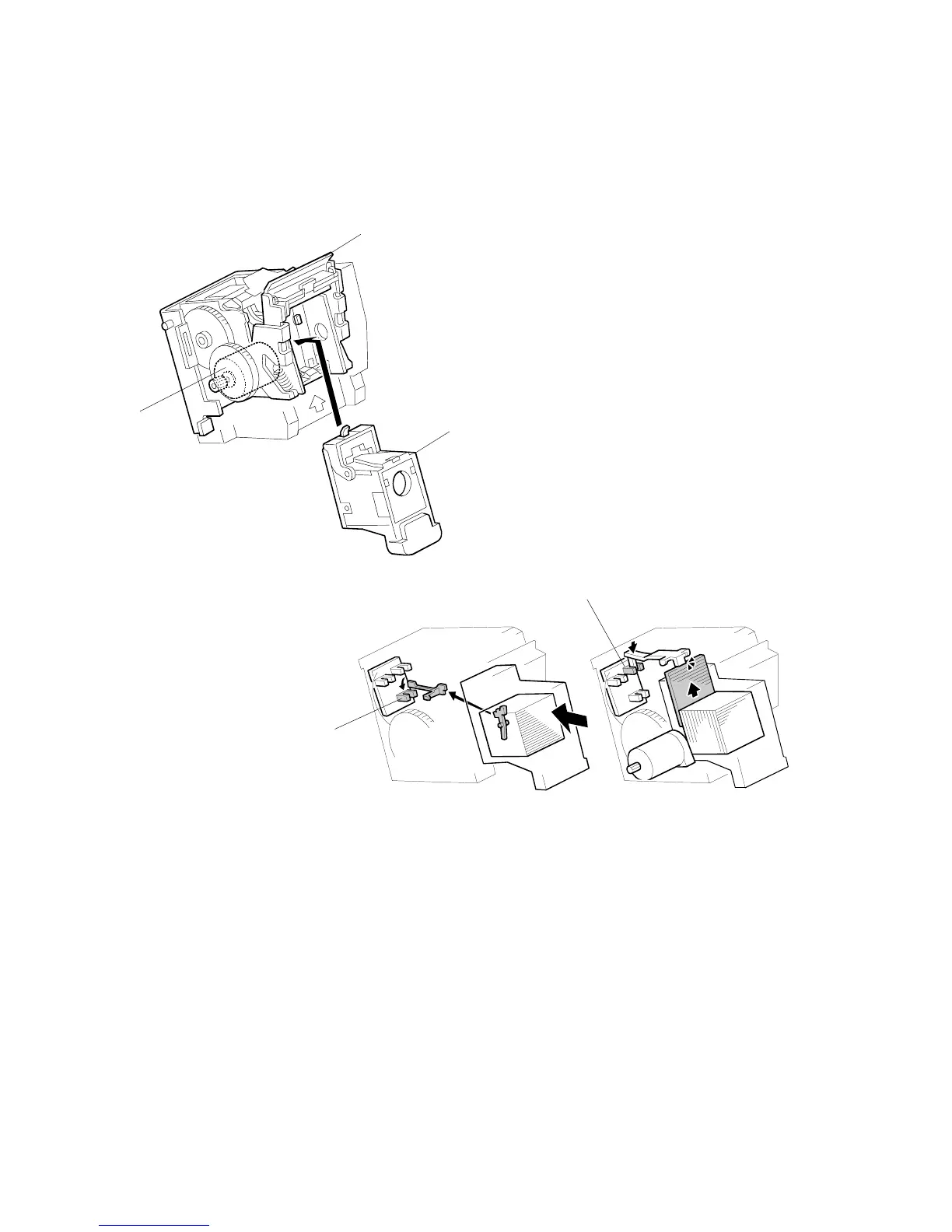

Staple firing is driven by the stapler motor [A] inside the stapler unit. The stapler
hammer [B] fires the stapler [C].
The cartridge set sensor [D] detects the cartridge at the correct position.
The staple end sensor [E] detects the staple end condition.
B468D015.WMF
B700D304.WMF
[A]
[B]
[C]
[D]
[E]
