August 2006 COVER INTERPOSER TRAY (B704)
1-103
Installation
1.14 COVER INTERPOSER TRAY (B704)
1.14.1 ACCESSORIES
Check the accessories and their quantities against this list.
Description Q’ty
1. Front door extension (top)...................................................... 1
2. Rear cover extension (bottom)............................................... 1
3. Shoulder screws .................................................................... 3
4. Tapping screws – M4 x 8....................................................... 9
5. Tapping screws – M3 x 8....................................................... 2
6. Tapping screws – M3 x 6....................................................... 5
7. Adjuster plates (B706 Only)................................................... 2
8. Hinge Bracket (B706 Only) .................................................... 1
9. Plate Extension (bottom)........................................................ 1
10. Gasket Seals ......................................................................... 2
11. Right Rear Cover Plate (B706 only)....................................... 1
12. Spacer ................................................................................... 1
13. Anti-Static Brush.................................................................... 1
14. Spacer (B706 only)................................................................ 1
15. Spacer (Not used).................................................................. 2
16. Right front corner plate (for B706) only)................................. 1
17. Front door extension (bottom)

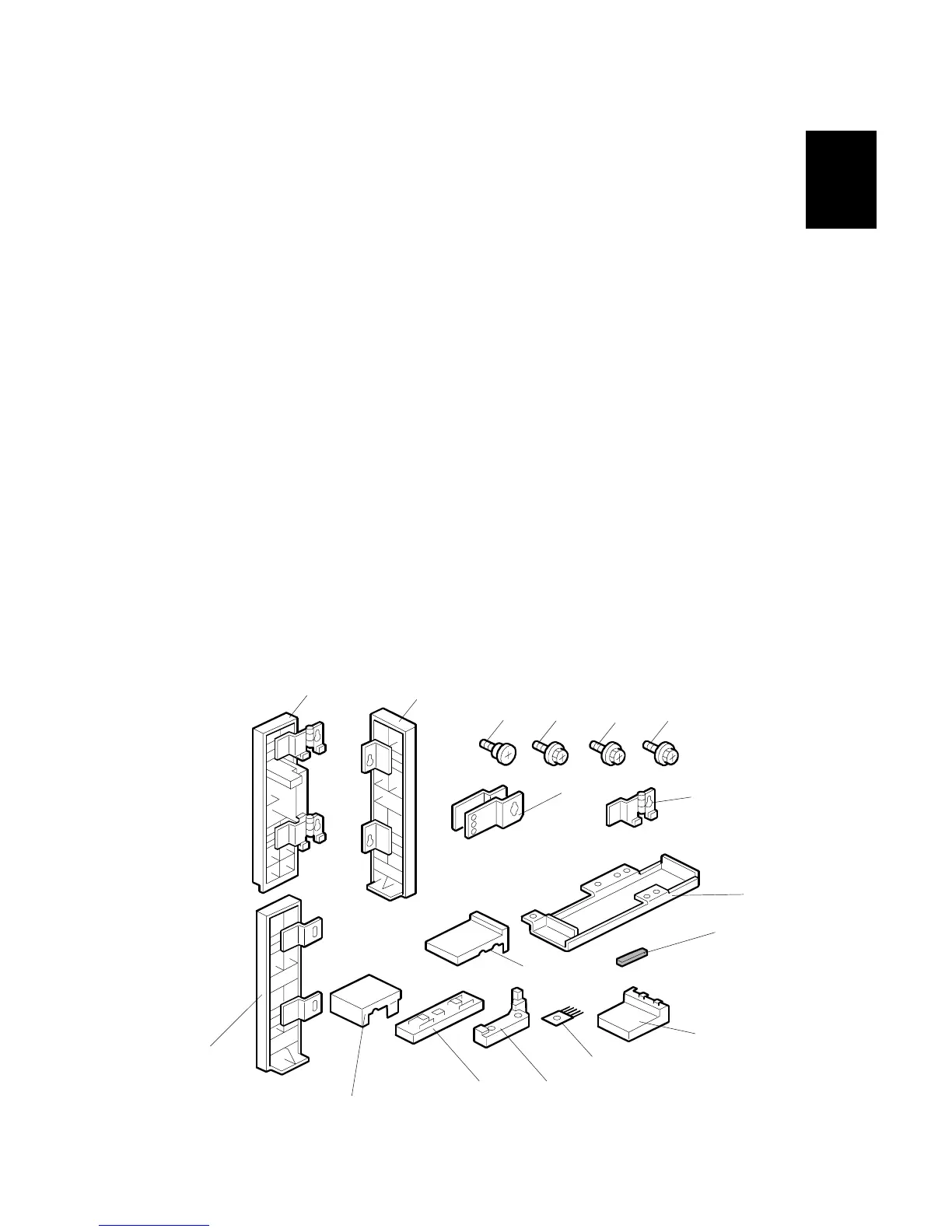

B704I101.WMF
10
11
12
13
1
2
3
4
5
6
7
8
9
15
17
16
14
