Toshiba e-STUDIO4500c Service Manual

REPLACEMENT AND ADJUSTMENT September 2006
B706-30

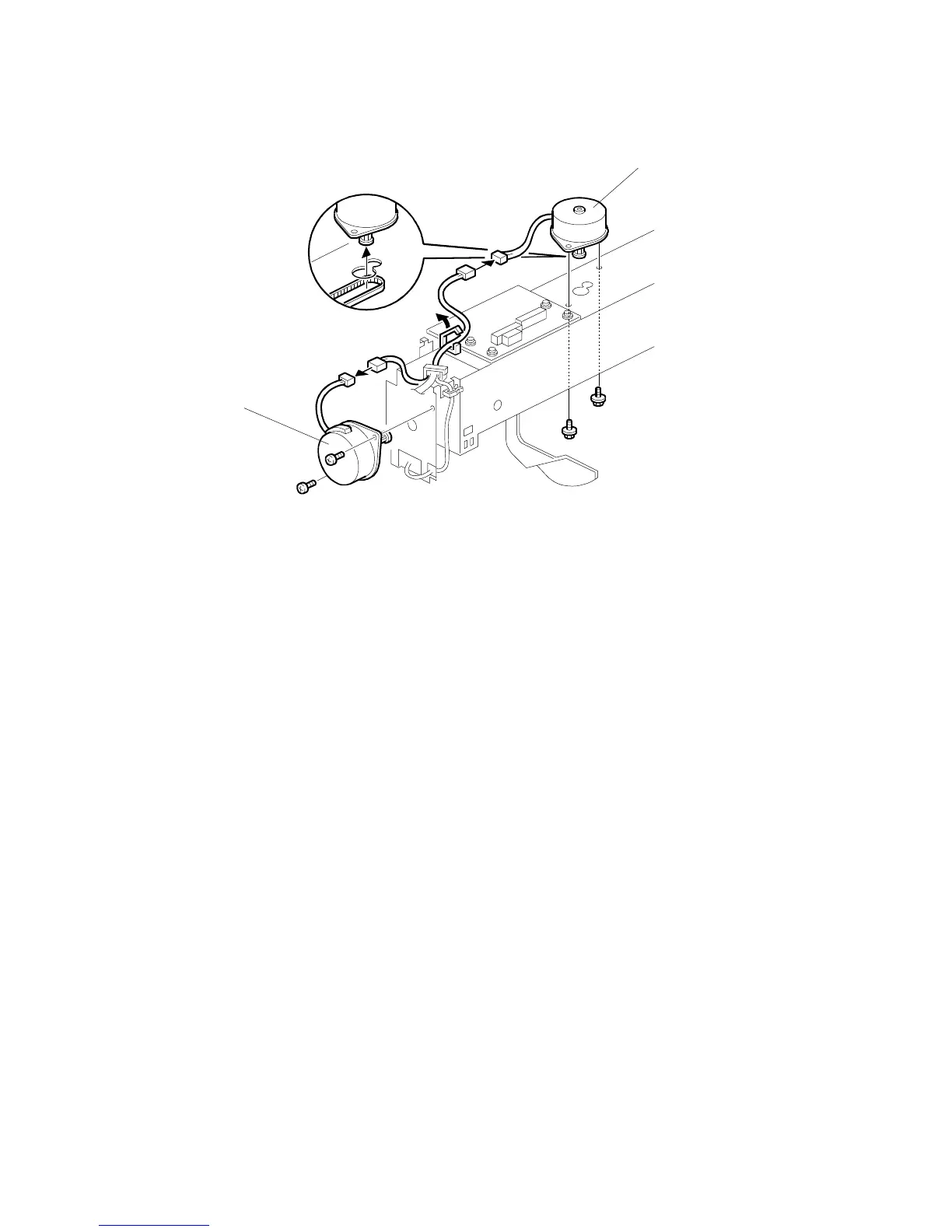

3.10.3 JOGGER UNIT MOTOR
1. Remove the jogger unit from the finisher. ( 3.10.1)
2. Remove the shift jogger motor [A] ( x 2,  x 1).
3. Remove the shift jogger lift motor [B] ( x 2,  x 1).
B513R002.WMF
[A]
[B]
06/09
