Toshiba e-STUDIO4500c Service Manual

August, 2006 MOTORS
3-151

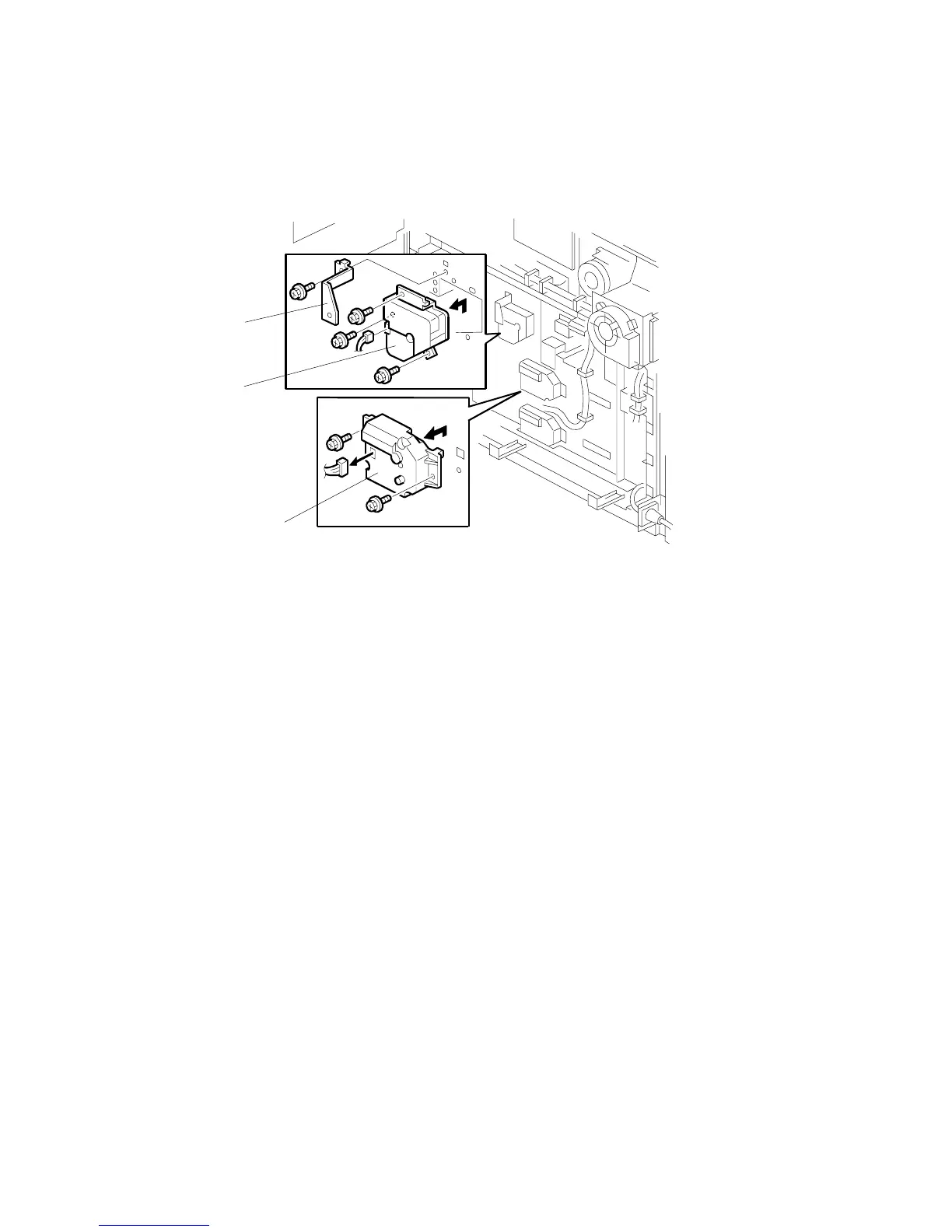

3.16.5 BOTTOM PLATE LIFT MOTOR (TRAYS 1, 2, 3)
• Remove the rear covers (3.2.6)
• Open the controller box and lock it (3.2.11)
• Remove HVPS and PFC board assembly (3.14.7)
• Remove PSU (3.14.8)
Tray 1
[A]: Bracket ( x1)
[B]: Bottom plate lift motor – Tray 1 ( x3,  x1)
Trays 2, 3
• Remove HVPS and PFC board assembly (3.14.7)
• Remove PSU (3.14.8)
Remove:
[C]: Bottom plate lift motor – Tray 2, 3 ( x1,  x2)
B132R723A.WMF
[A]
[B]
[C]
