Toshiba e-STUDIO4500c - Development Unit; Overview

PHOTOCONDUCTOR UNITS (PCU) August, 2006
6-60
6.8.3 DEVELOPMENT UNIT
Overview

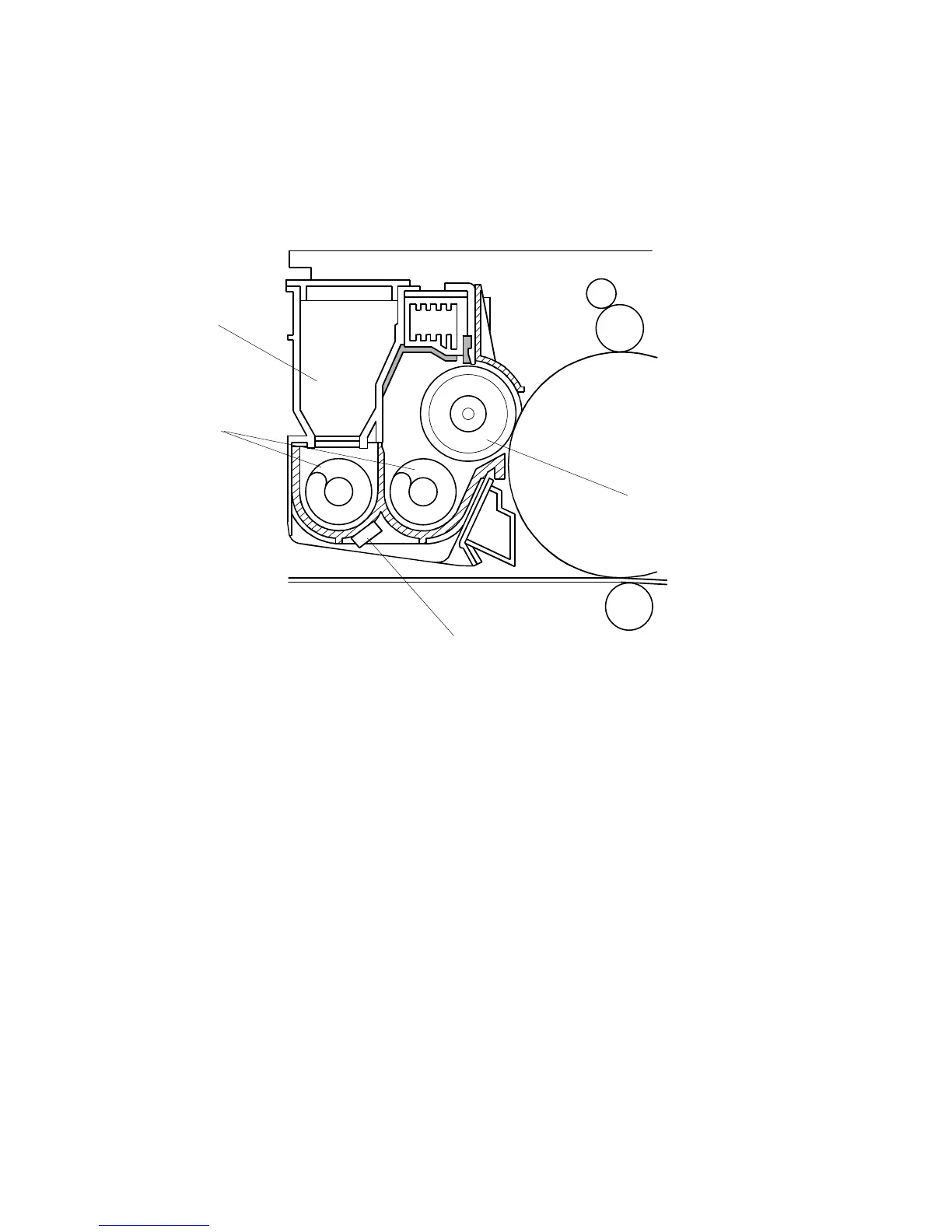

[A]: Developer Cartridge
[B]: Developer Augers
[C]: Development Roller
[D]: TD Sensor
Development method: Dual-component development
Agitation: Two augers
Development unit drive:
PCU motor, 1 motor for each PCU (Y, C, M, K)
Development bias: Development bias power pack
B132D211.WMF
