August, 2006 TONER SUPPLY UNIT
3-63
3.6.5 TONER HOPPER MOTOR
Remove:
• Open the front door.
• Toner hopper (3.2.7)

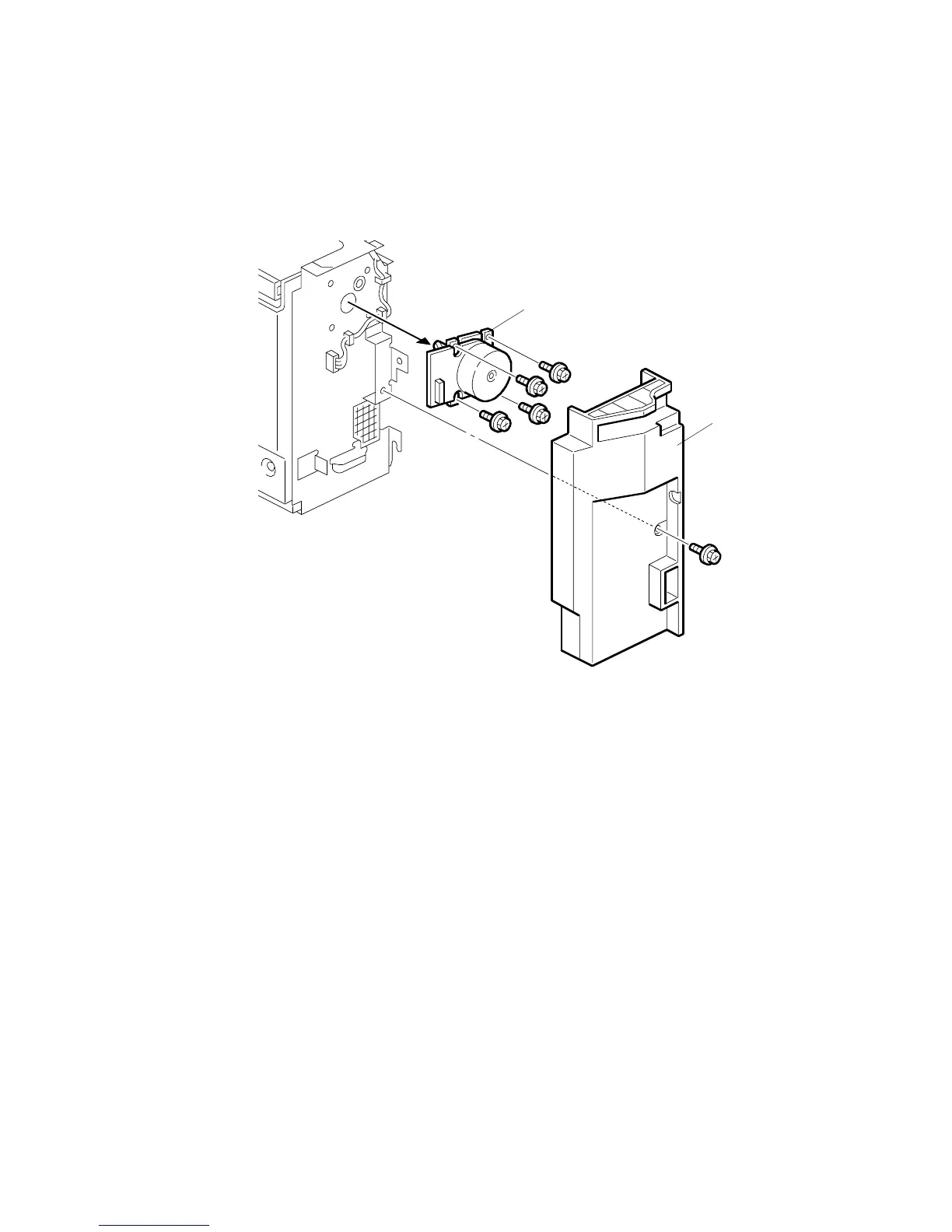

[A]: Motor cover ( x1)
[B]: Toner hopper motor ( x4, x1)
B132R211.WMF
[A]
[B]
