PAPER TRANSFER UNIT August, 2006
3-64
3.7 PAPER TRANSFER UNIT
3.7.1 RELAY SENSOR
Pull out the drawer unit. (3.2.9)
[A]: Sensor bracket ( x1)
[B]: Relay sensor ( x1)
Reinstallation
• Do the forced MUSIC adjustment with SP 2111 001 ( 3.19.4).

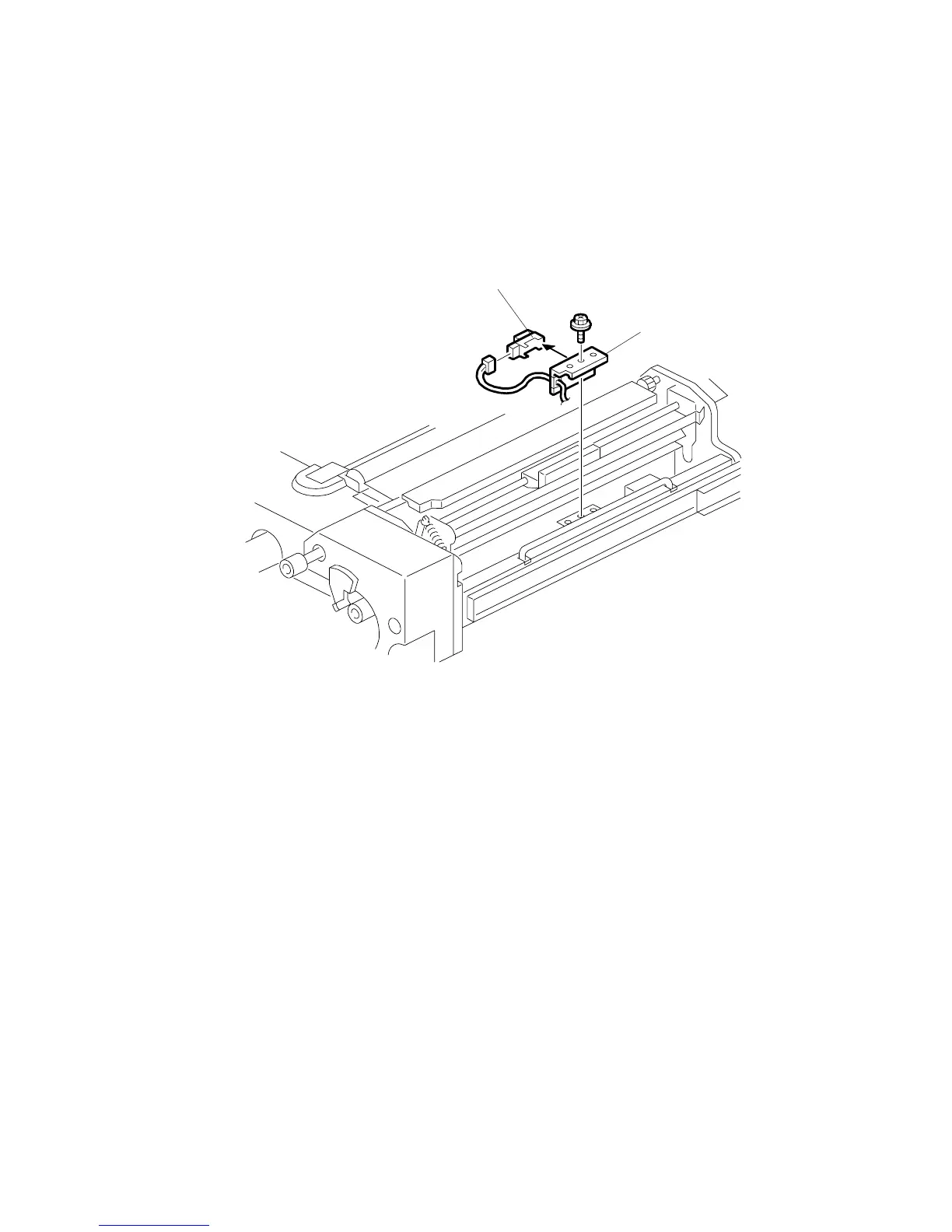

B132R615.WMF
[A]
[B]
