PAPER TRANSFER UNIT August, 2006

3-74

3.7.10 DOUBLE-FEED DETECTION LED

Remove:

• Drawer unit (3.2.9)

• Drawer unit connector bracket (3.7.9)

• Registration motor assembly (3.7.9)

• Sensor support plate (3.7.2)

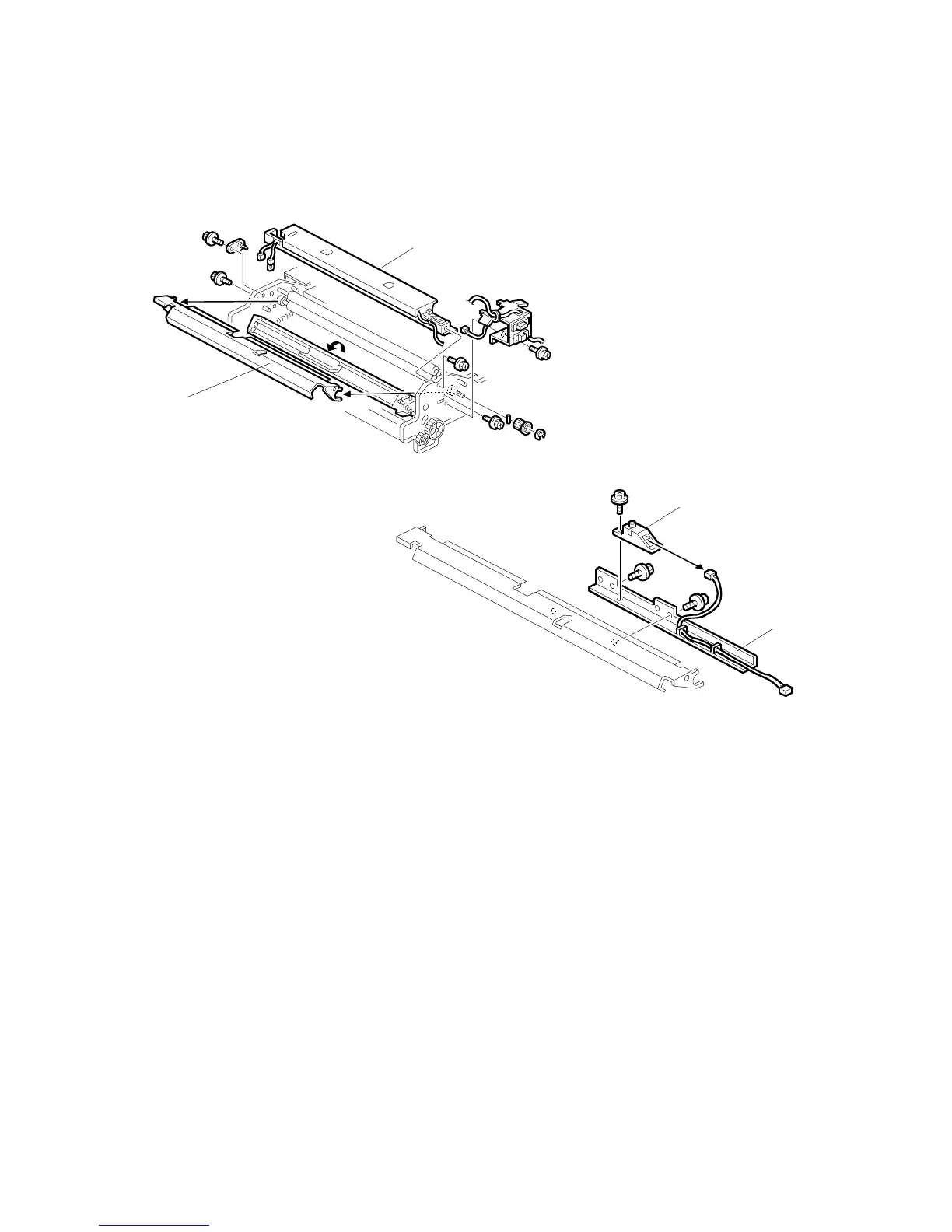

[A]: Upper stay ( x2,  x1, Gear x 1, Pin x1)

[B]: Lower stay ( x2,  x1)

[C]: Sensor bracket ( x2)

[D]: Double-feed detection LED ( x1,  x1)

Reinstallation

• Do the forced MUSIC adjustment with SP 2111 001 ( 3.19.4).

B132R619.WMF

B132R620.WMF

[A]

[B]

[C]

[D]
