OVERALL MACHINE INFORMATION September 2006
B706-52
7. OVERALL MACHINE INFORMATION

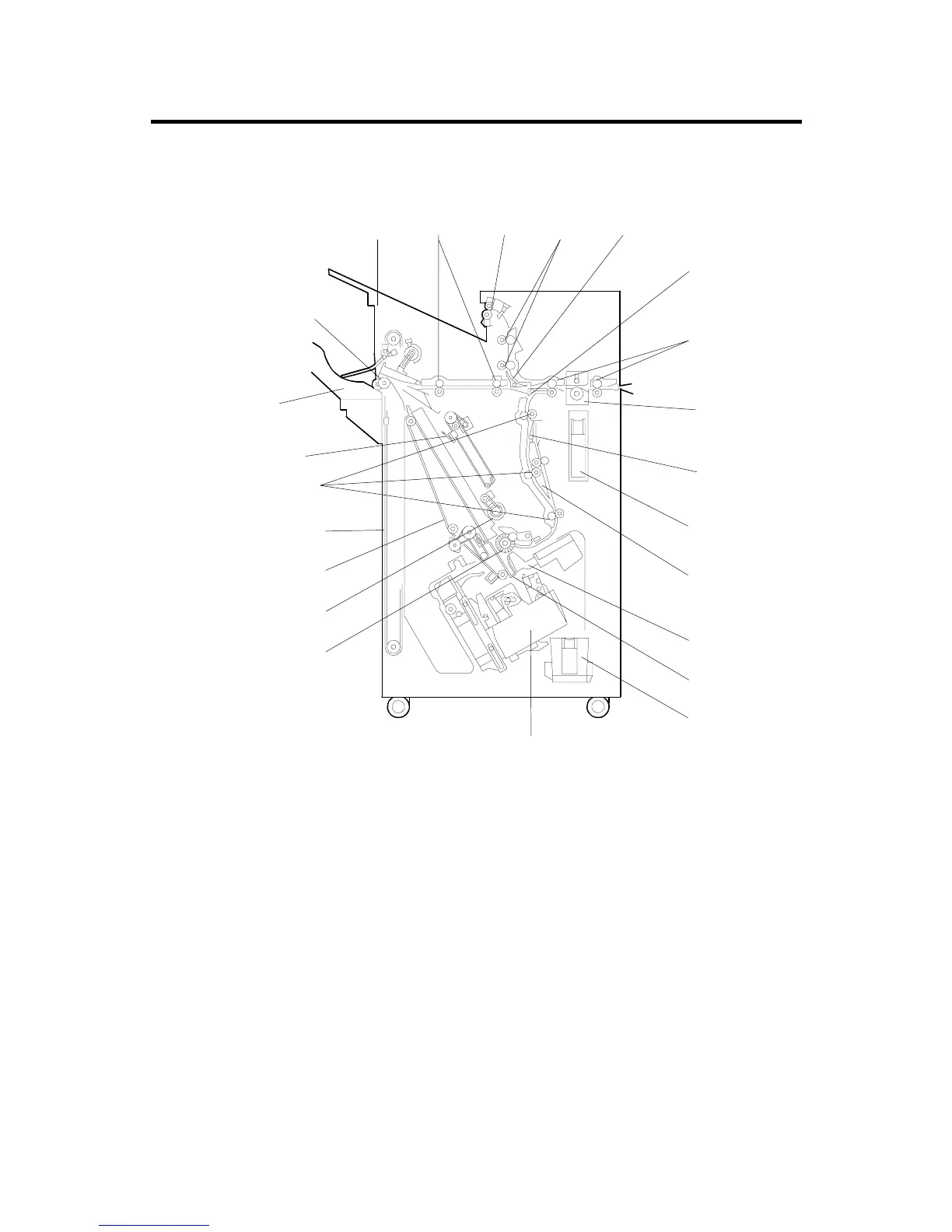

7.1 MECHANICAL COMPONENT LAYOUT
1. Upper Tray
2. Middle Transport Rollers
3. Upper Tray Exit Roller
4. Upper Transport Rollers
5. Tray Junction Gate
6. Stapler Junction Gate
7. Entrance Rollers
8. Punch Unit
9. Pre-stack Junction Gate
10. Punch Waste Hopper
11. Pre-stack Tray
12. Stack Plate
13. Staple Waste Hopper
14. Stapler
15. Alignment Brush Roller
16. Positioning Roller
17. Stack Feed-out Belt
18. Shift Tray Drive Belt
19. Lower Transport Rollers
20. Shift Tray
21. Shift Tray Exit Roller
22. Jogger Top Fence
23. Jogger Bottom Fence
6V900.WMF
B478V500.WMF
10
9
15
14
3
11
12
13
16
17
18
20
19
21
4
7
8
1
2
5
6
2
2
2
3
