Toshiba e-STUDIO4500c Service Manual

FUSING UNIT August, 2006
3-86
3.9 FUSING UNIT

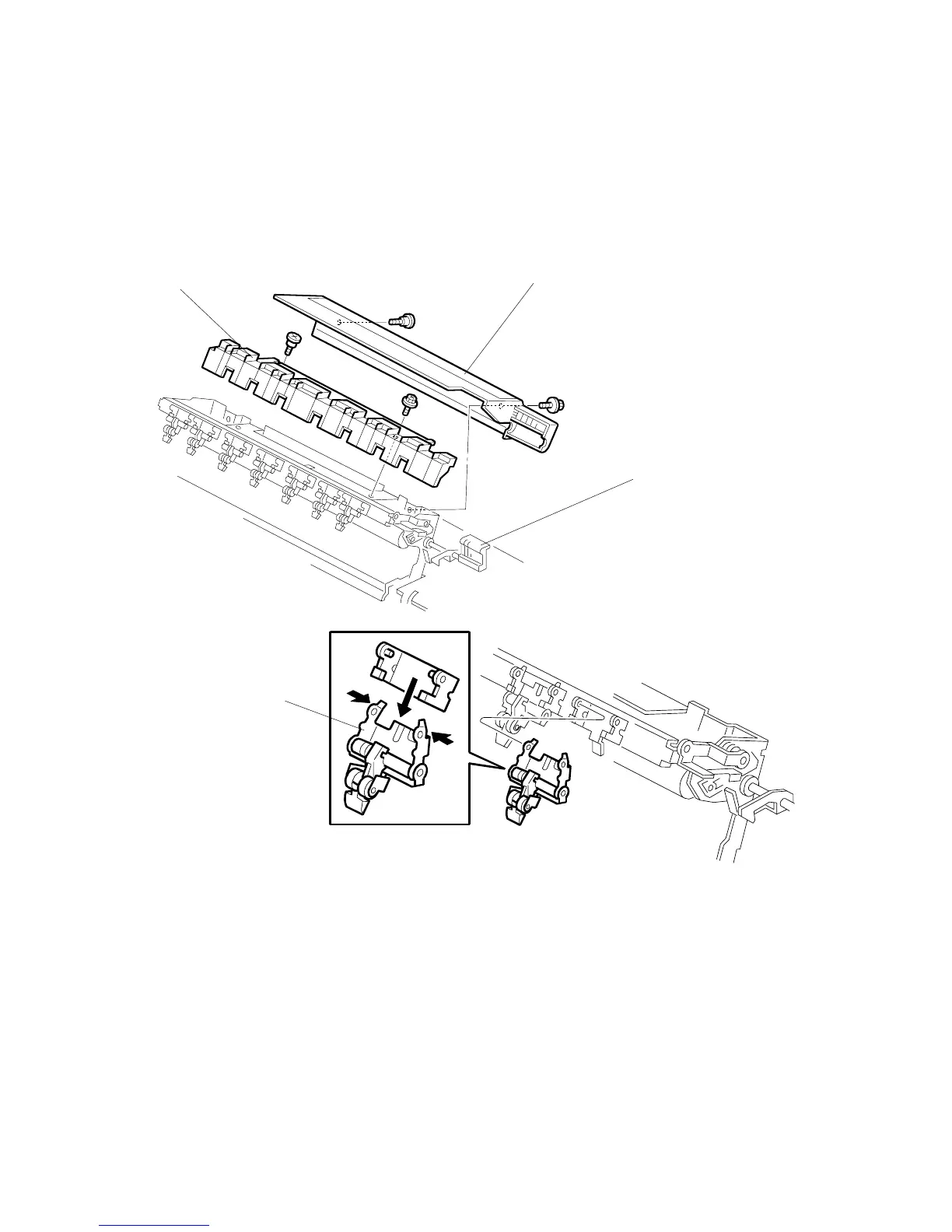

3.9.1 FUSING BELT STRIPPERS
Pull out the drawer unit (3.2.9)
[A]: Raise lever until it stops.
[B]: Fusing cleaning unit cover ( x2)
[C]: Fusing unit exit guide ( x2)
[D]: Hot roller stripper
• Press the sides in to disconnect the strippers and remove.
B132R403.WMF
B132R402.WMF
[A]
[B]
[C]
[D]
