Toshiba e-STUDIO4500c Service Manual

DUPLEX UNIT August 2006
6-142

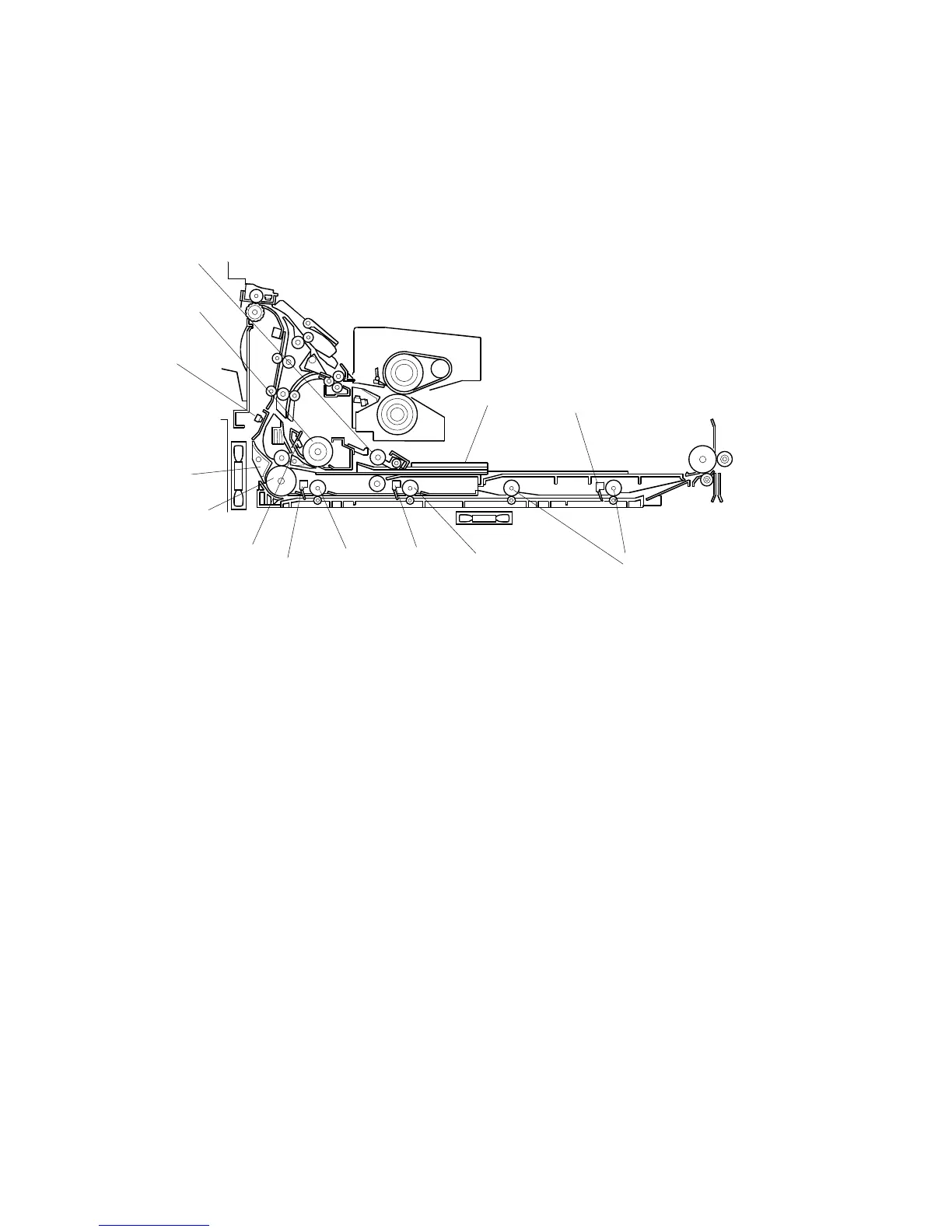

6.16 DUPLEX UNIT
6.16.1 OVERVIEW
1. Relay Sensor
2. Inverter Entrance Roller
3. Reverse Trigger Roller
4. Jogger Fences
5. Duplex Transport Sensor 3
6. Duplex Transport Rollers 3, 4
7. Duplex Transport Roller 2
8. Duplex Transport Sensor 2
9. Duplex Transport Roller 1
10. Duplex Transport Sensor 1
11. Duplex Inverter Sensor
12. Inverter Exit Roller
13. Duplex Junction Gate
For one-sided printing, pages are fed out face-down (default). For face-down
output, the exit junction gate sends the page to the inverter, and the inverter inverts
the page.
If the operator selected duplex mode, the inverter inverts the page, then the duplex
junction gate directs the page into the duplex unit. The duplex unit feeds the page
back to the machine to print on the second side.
B132D501.WMF
1
2
3
4
5
6
7
8
9
10
11
12
13
