Toshiba e-STUDIO4500c Service Manual

BYPASS UNIT August, 2006
3-128
3.13 BYPASS UNIT
3.13.1 BYPASS PICK-UP, FEED, SEPARATION ROLLER
• Remove right covers (3.2.5)
• Open the bypass tray
• Remove the bypass unit (3.13.3)
• Remove the upper unit cover (3.13.4)

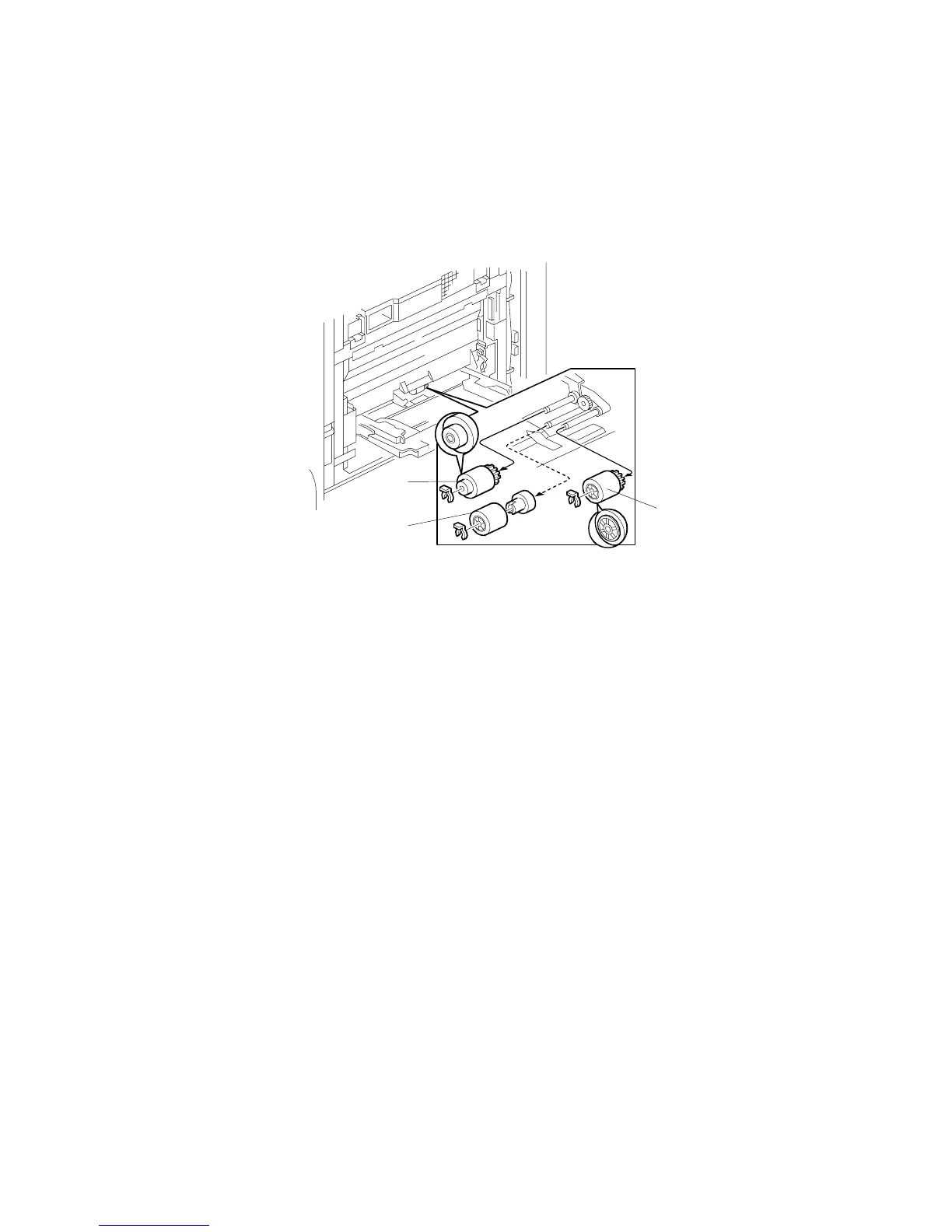

Remove:
[A]: Pick-up roller ( x1)
[B]: Feed roller ( x1)
[C]: Separation roller ( x1)
B132R601A.WMF
[A]
[B]
[C]
