August, 2006 SCANNER UNIT
3-27
3.3.3 EXPOSURE LAMP
Remove:
Exposure glass (3.3.1)
Operation panel (3.2.2)

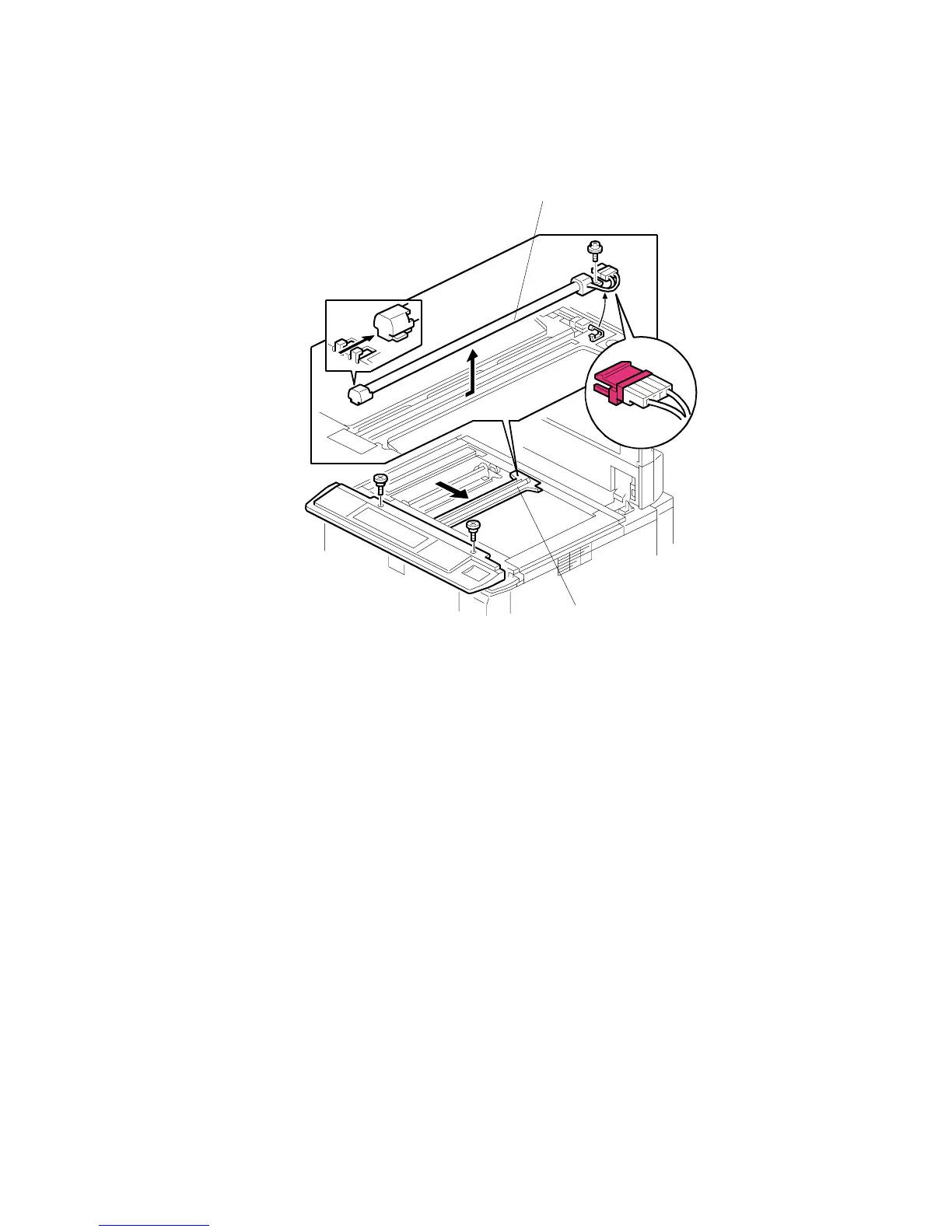

1. Slide the 1st scanner [A] to the cutout in the frame.
2. Remove the exposure lamp [B] ( x1, x1, x1)
Important:
Never touch the surface of the exposure lamp with bare fingers.
Work carefully to avoid damaging the relay plugs attached to the rear ends of the
lamp.
B132R129.WMF
[A]
[B]
