Toshiba e-STUDIO4500c Service Manual

OVERFLOW DETECTION September 2006
B762-8
2.3 OVERFLOW DETECTION
2.3.1 OVERVIEW
An overflow sensor [A] and actuator [B] are above the exit of each paper tray. The
actuator, mounted on a swivel arm, remains in contact with the top of the stack.
The actuator rises as the stack becomes higher until it activates the sensor. Then,
a tray full message appears on the operation panel and the job halts. If the paper is
removed before the tray is full, the job continues.

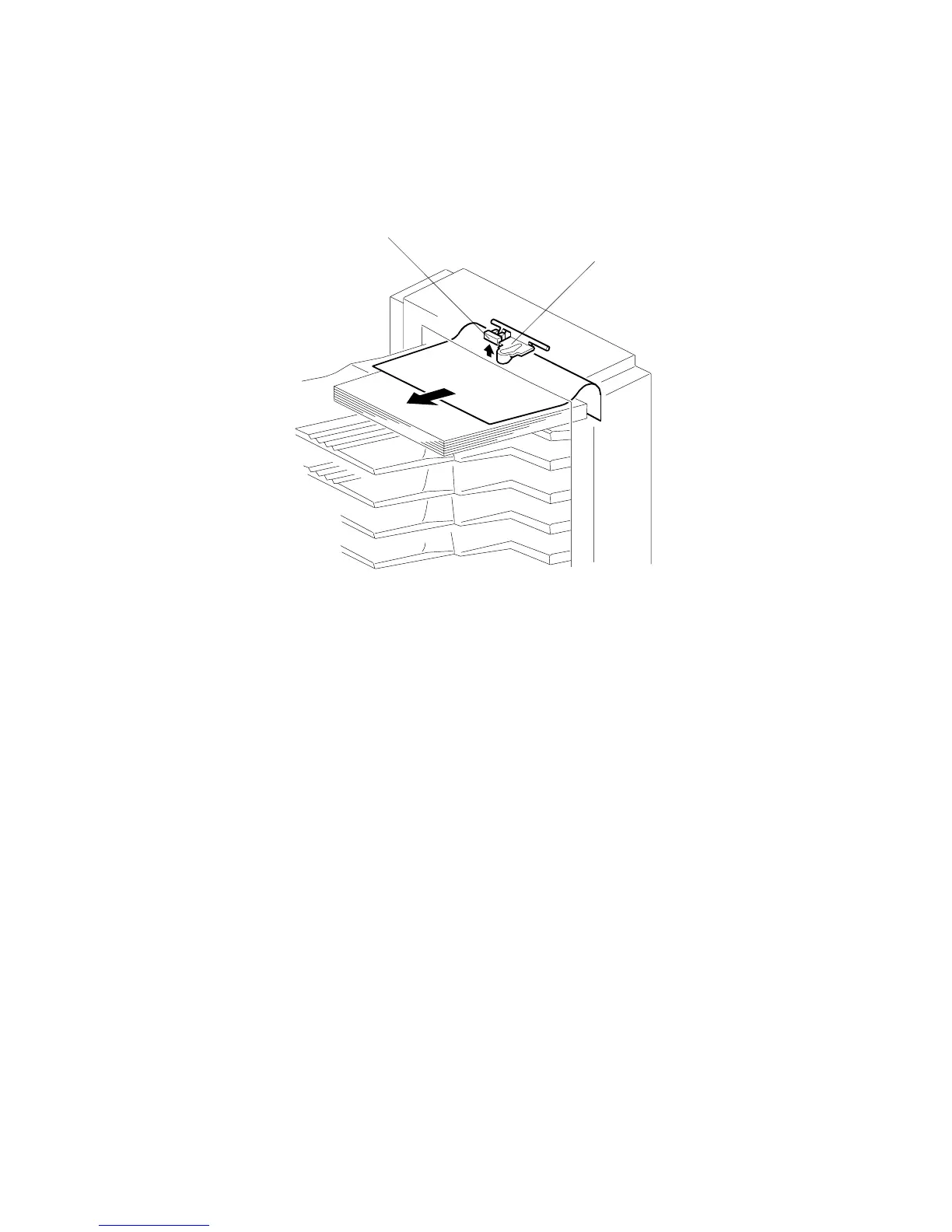

B471D005.WMF
[A]
[B]
06/09
