Toshiba e-STUDIO4500c Service Manual

FUSING UNIT August, 2006
3-94

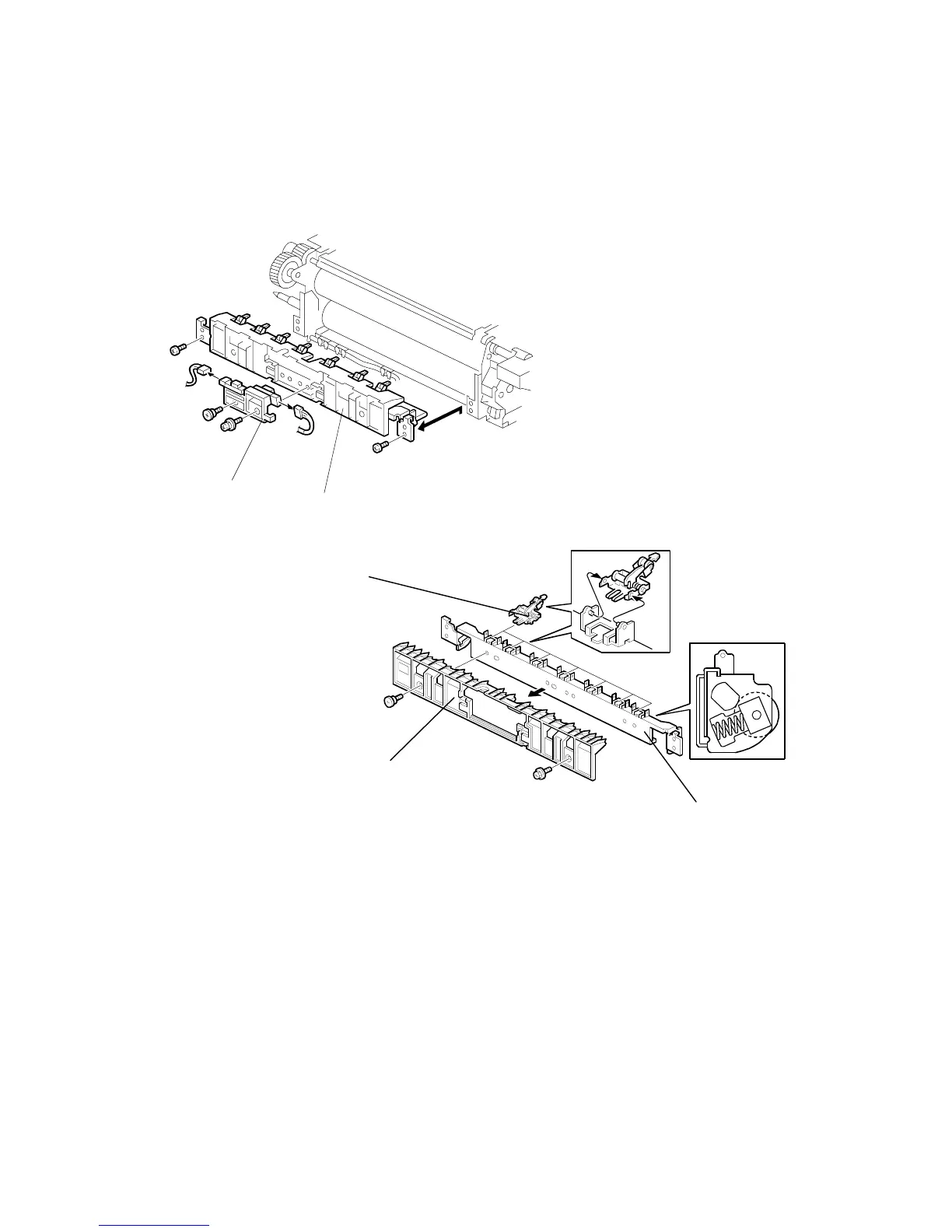

3.9.9 PRESSURE ROLLER CLEANING FELT ROLLER
Remove:
• Fusing unit (3.9.2)
[A]: Exit sensor bracket ( x2,  x2)
[B]: Lower exit guide assembly ( x2)
[C]: Lower exit guide ( x2)
[D]: Pressure roller strippers ( x7)
[E]: Cleaning felt roller Assy
B132R406.WMF
[C]
[D]
[E]
[A]
[B]
