August, 2006 BYPASS UNIT
3-131

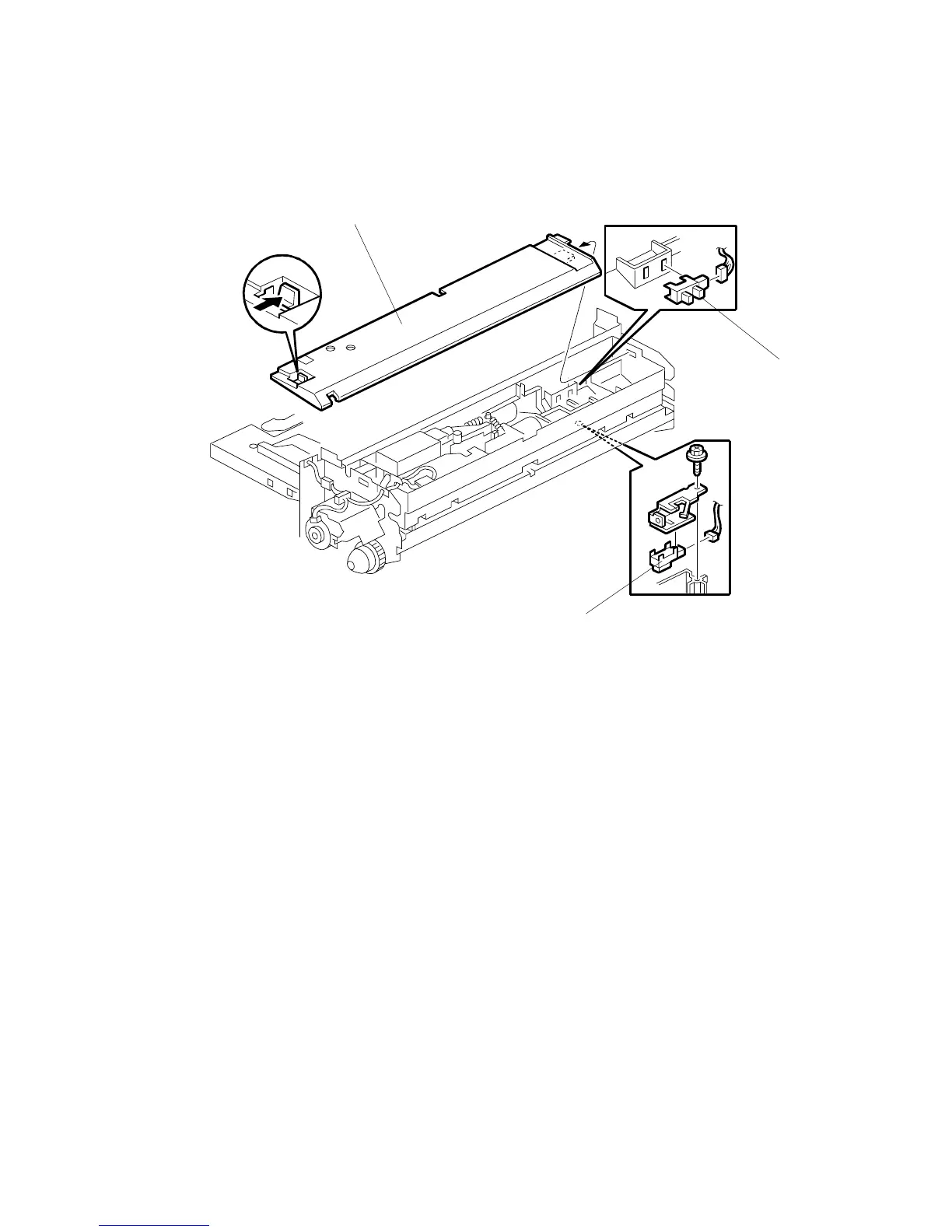

3.13.4 BYPASS PAPER END SENSOR, FEED SENSOR
Remove:
• Bypass unit (3.13.3)
[A]: Unit upper cover (Release x1)
[B]: Bypass paper end sensor ( x1)
[C]: Feed sensor ( x1, x1)
B132R613.WMF
[A]
[B]
[C]
