Toshiba e-STUDIO4500c Service Manual

September 2006 COVERS AND TRAYS
B762-1
Peripherals
1. REPLACEMENT AND ADJUSTMENT
CAUTION
Switch the machine off and unplug the machine before starting and
procedure in this section.

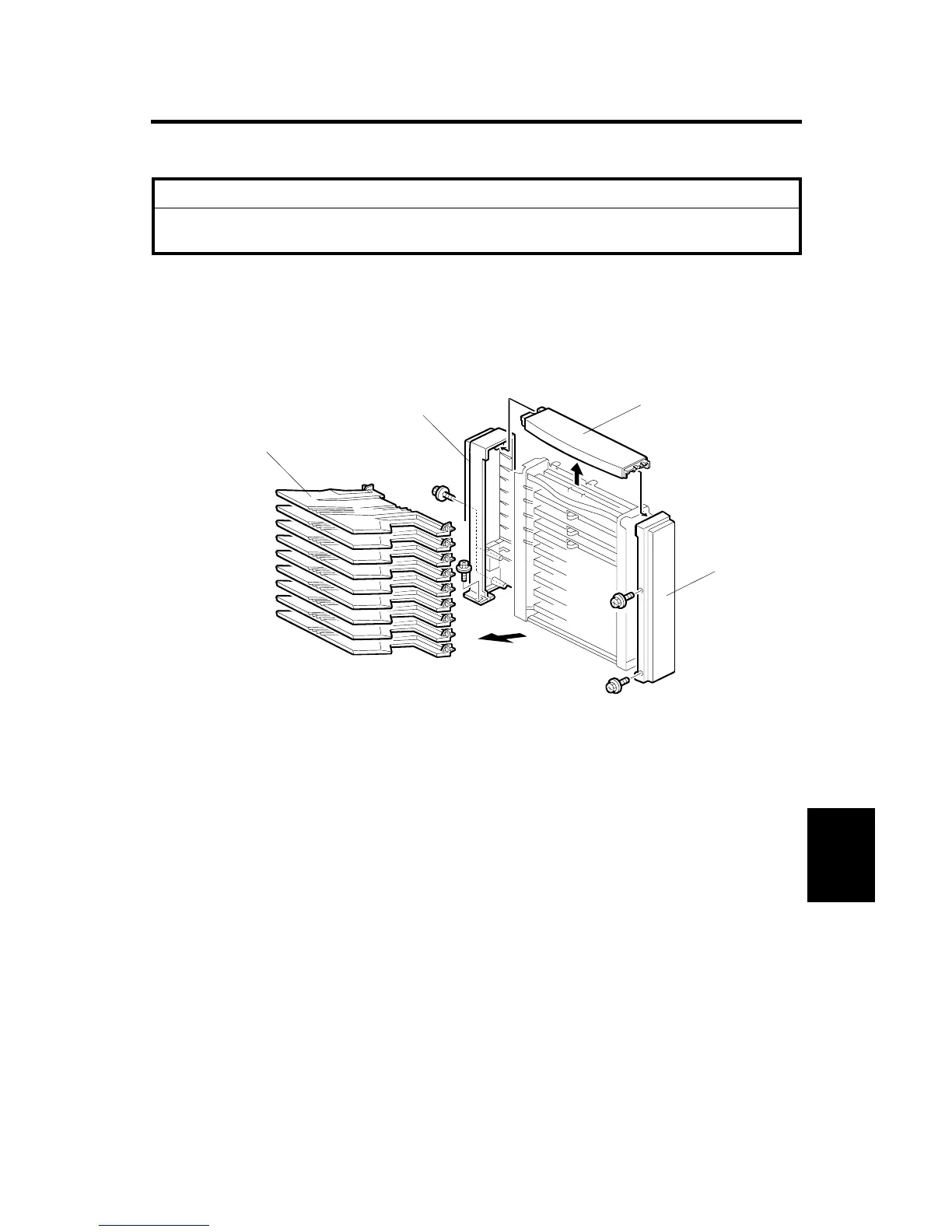

1.1 COVERS AND TRAYS
[A]: Trays
• Grip each tray by the front and lift out.
[B]: Front cover ( x2)
[C]: Rear cover ( x3)
[D]: Top cover
B471R001.WMF
[A]
[B]
[C]
[D]
