Toshiba e-STUDIO4500c Service Manual

WASTE TONER COLLECTION August, 2006
6-72

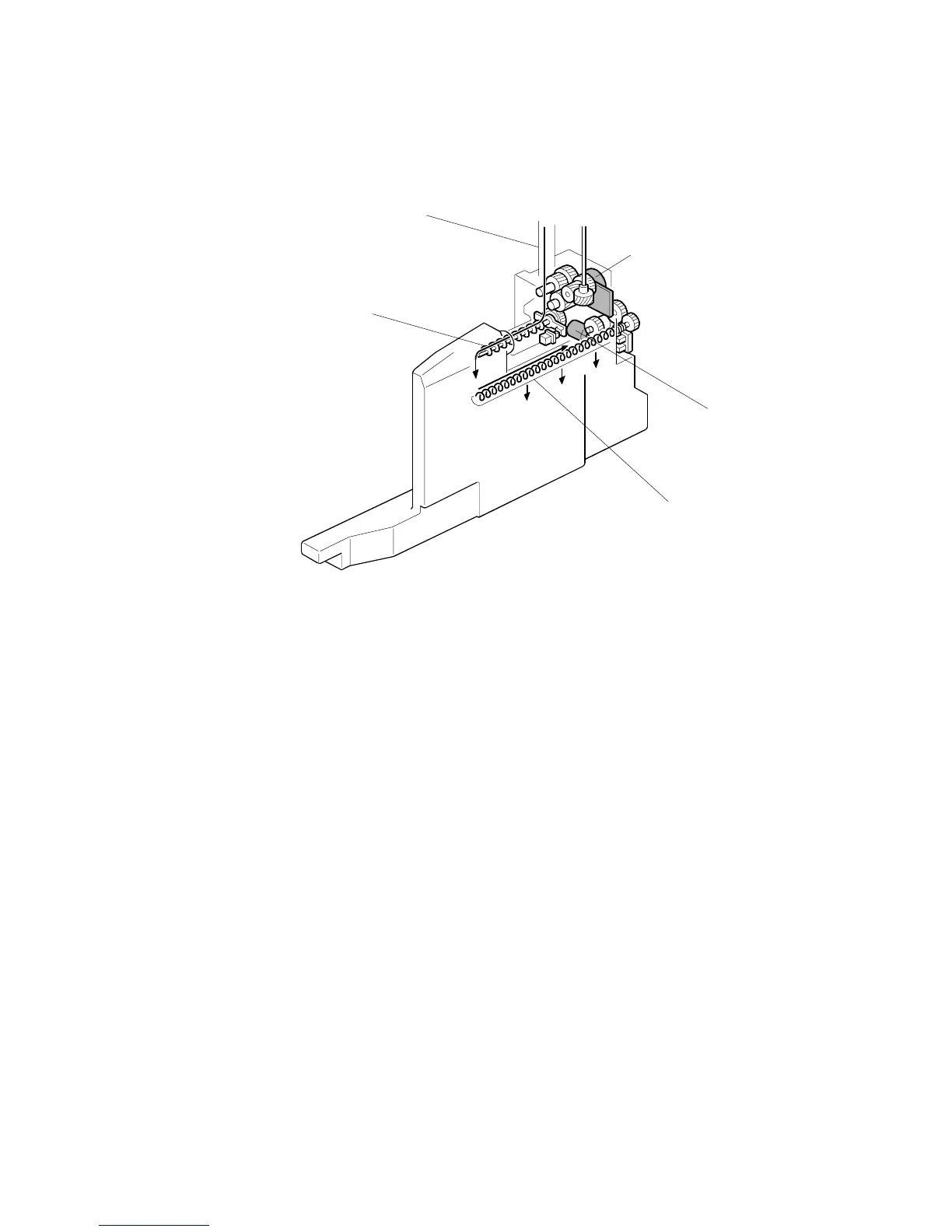

6.10.2 WASTE TONER UNIT MOTORS
[A]: Waste Toner Transport Motor
Drives the waste toner bottle transport coil [C] and the vertical waste toner
transport coil [D].
[B]: Waste Toner Distribution Motor
Drives the waste toner bottle distribution coil [E]. This motor does not
constantly turn.
B132D220.WMF
[A]
[B]
[C]
[D]
[E]
