August, 2006 ARDF
3-159
3.18.4 BOTTOM PLATE POSITION SENSOR
Remove:
• Remove front cover (3.18.1)
• Original feed unit (3.18.2)

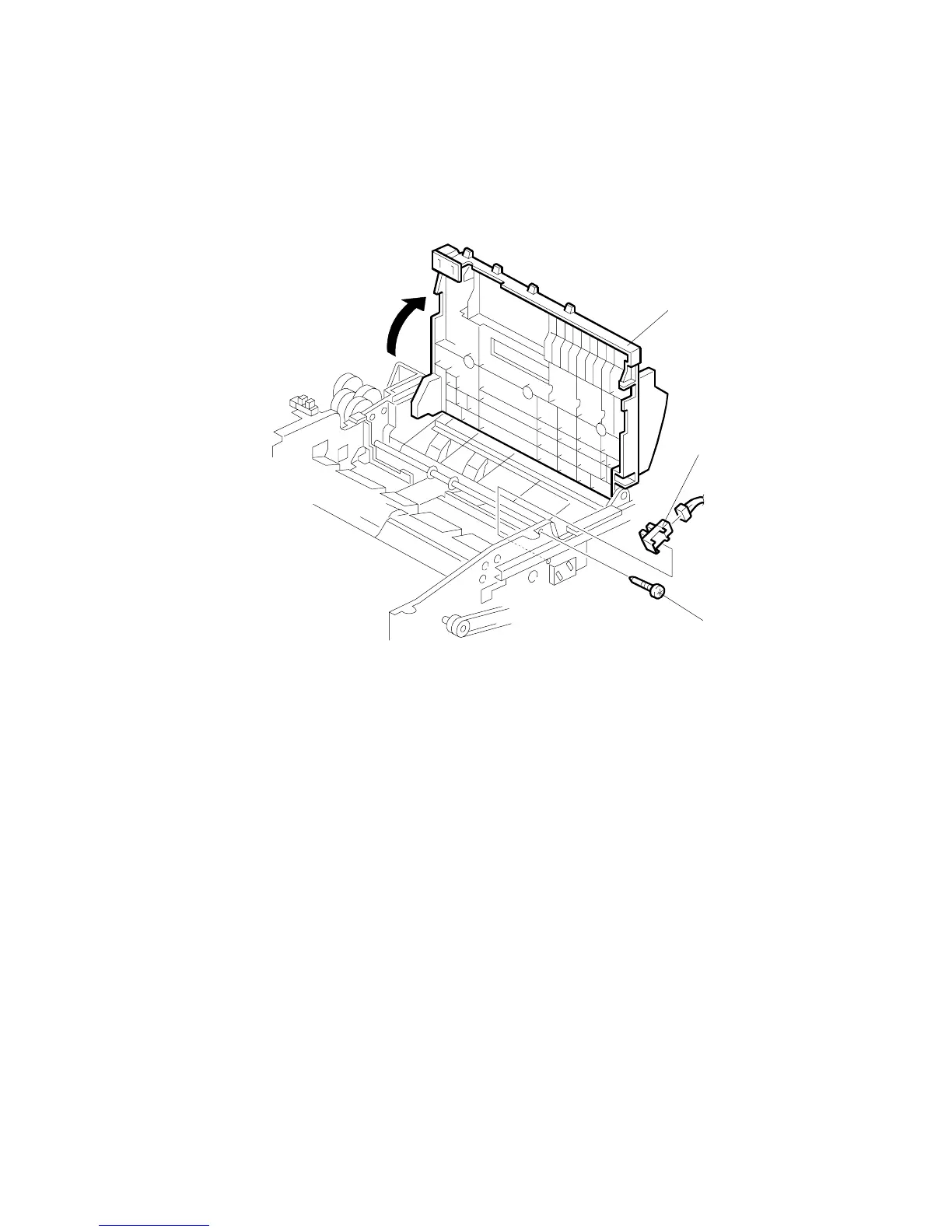

[A]: Pin screw x1
[B]: Raise the bottom plate
[C]: Bottom plate position sensor ( x1).
B132R117.WMF
[A]
[B]
[C]
