August, 2006 FUSING UNIT
3-99
3.9.12 HEATING ROLLER, FUSING BELT, HOT ROLLER
Remove:
• Fusing unit (3.9.2)
• Fusing unit upper cover (3.9.1)
• Fusing cleaning unit (3.9.5)
• Hot roller fusing lamp, heating roller fusing lamp (x3) (3.9.10)

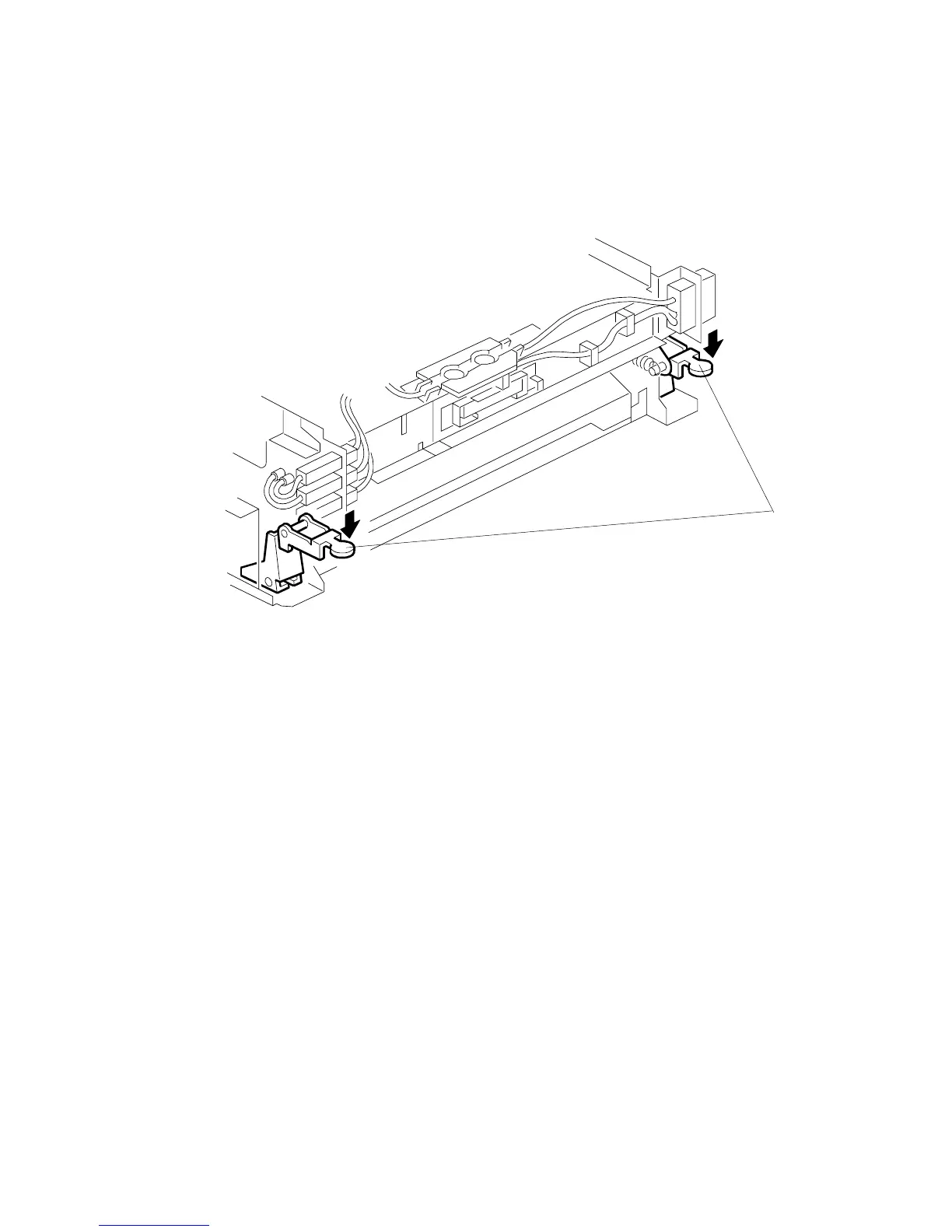

[A]: Release levers. Press down to release.
B132R415.WMF
[A]
