Toshiba e-STUDIO4500c - Right Covers

August, 2006 COMMON REMOVAL PROCEDURES
3-9

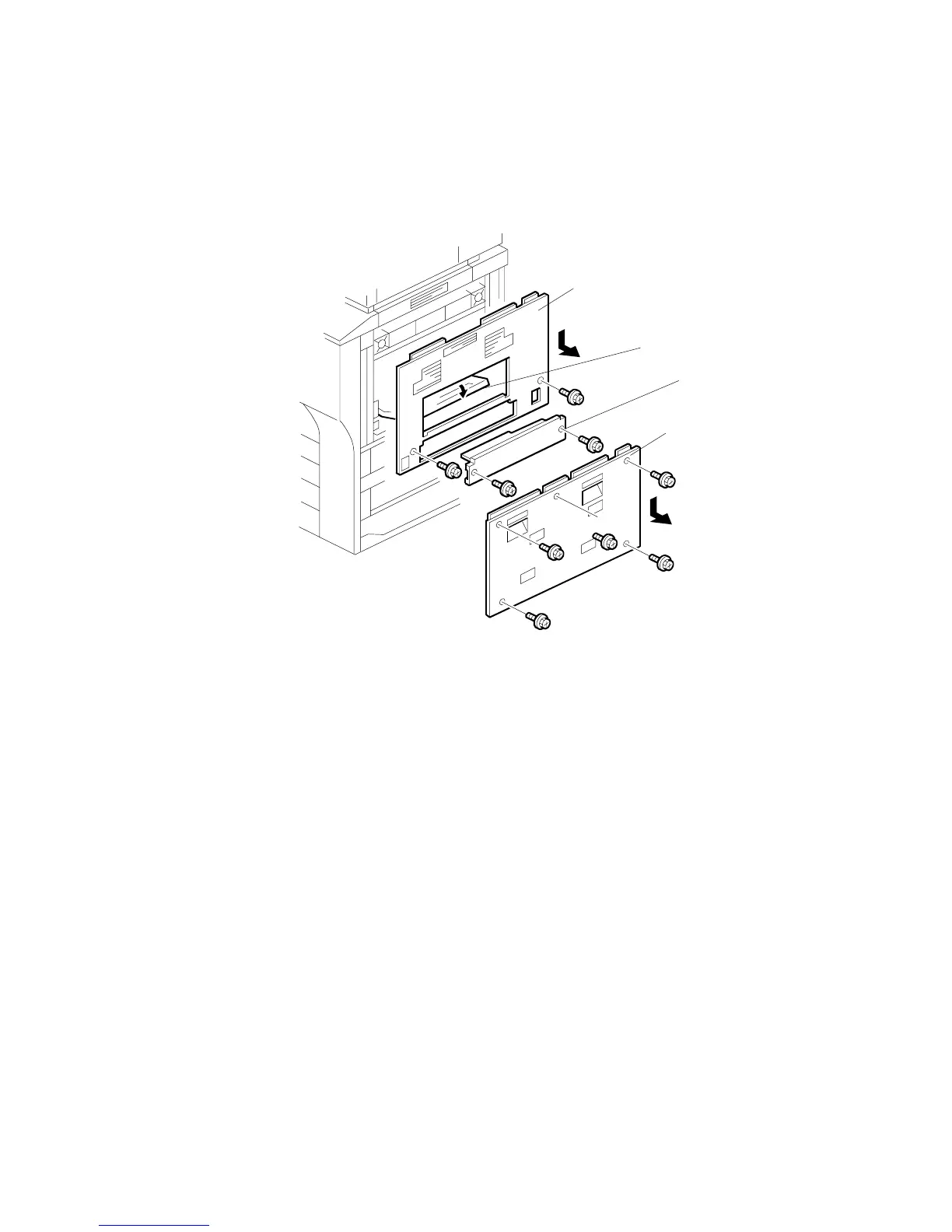

3.2.5 RIGHT COVERS
Remove:
• Disconnect and separate the LCT if it is installed.
[A]: LCT installation cover ( x2). This has been removed already if the LCT has
been installed.
[B]: Open the bypass tray.
[C]: Right upper cover ( x2). Pull the bottom of the cover down and toward you
as you remove it.
[D]: Right lower cover ( x5). Pull the bottom of the cover down and toward you as
you remove it.
Reinstallation
• Make sure all the cover tabs are inserted correctly before you fasten the screws.
B132R704.WMF
[A]
[B]
[C]
[D]
