REPLACEMENT AND ADJUSTMENT September 2006
B706-24
3.8.2 Z-FOLD JOGGER UNIT
1. Open the front door and pull out the stapler tray unit.
2. Remove the Z-fold jogger unit cover ( x 2).

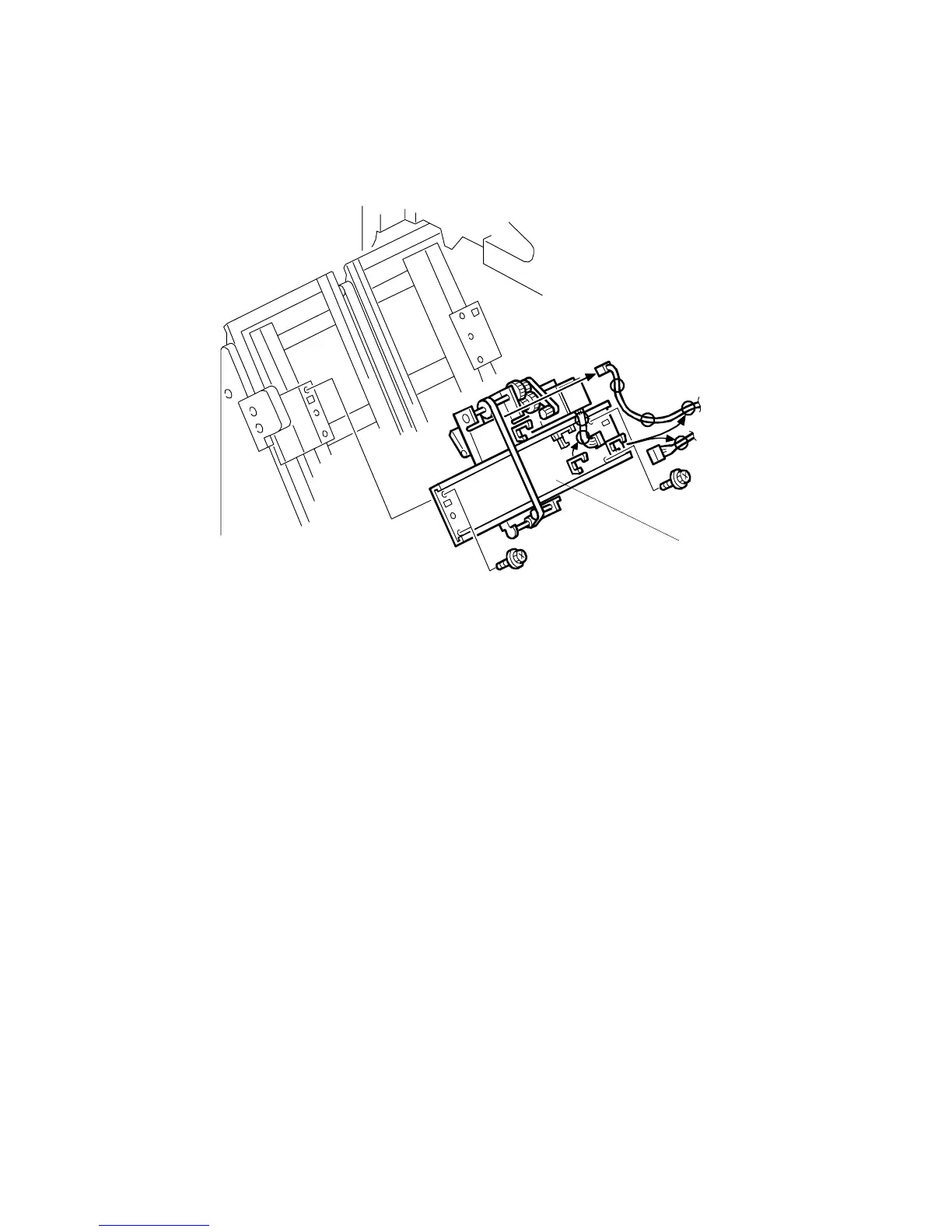

3. Remove the Z-fold jogger unit [A] ( x 4, x 4, x 2).
B706R103.WMF
B706R103.WMF
[A]
06/09
