Toshiba e-STUDIO4500c Service Manual

August, 2006 DUPLEX UNIT
3-107
Transport Sensor 1, 2, Inverter Exit Sensor

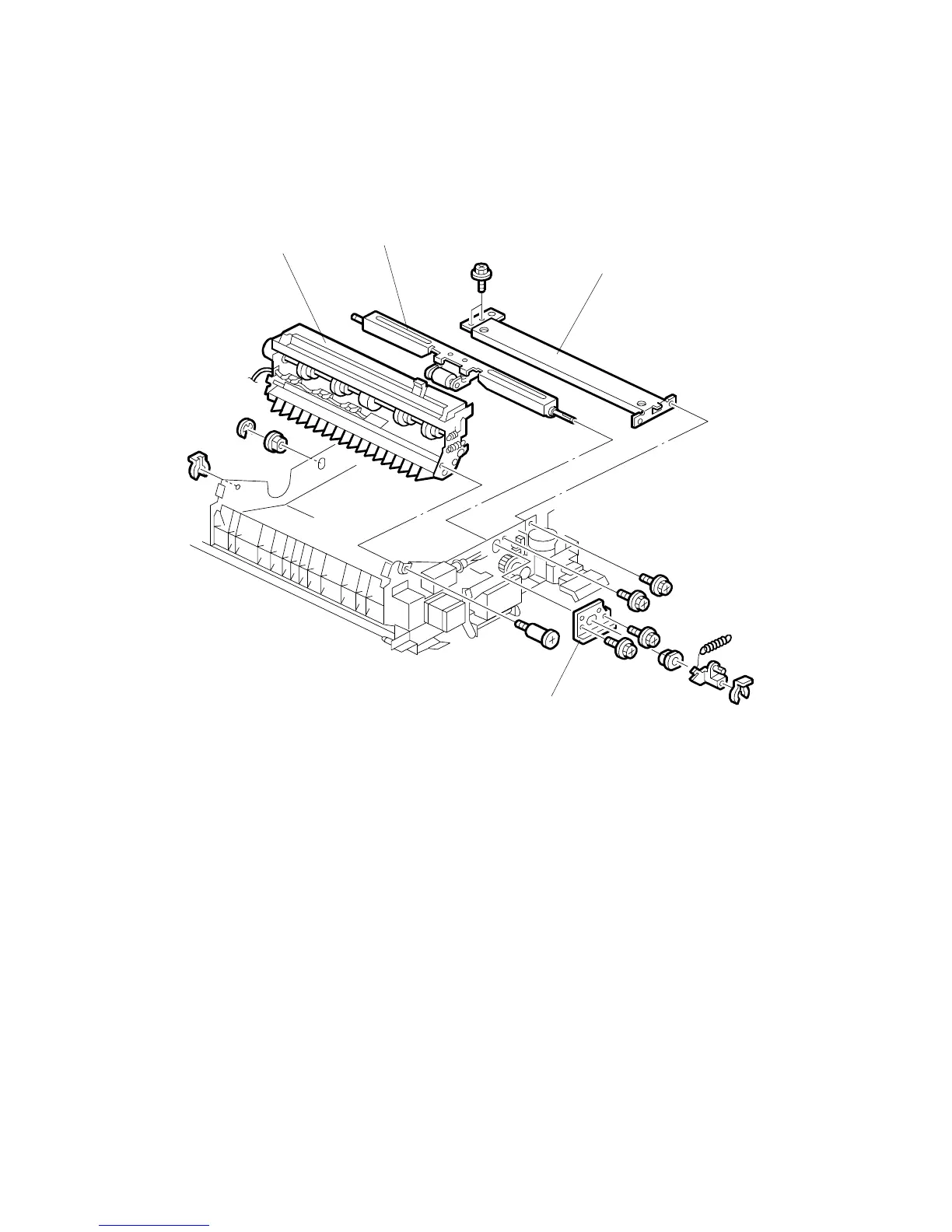

Remove the duplex unit (3.2.10)
[A]: Inverter unit ( x1 front,  x1 rear,  x1)
[B]: Reverse trigger roller assembly (Rear:  x1, Shaft bushing x1) (Front:  x1,
Link gear x1, Spring x1, Shaft bushing x1)
[C]: Plate ( x2)
[D]: Cross-stay ( x 4)
B132R503.WMF
[A]
[B]
[D]
[C]
