DETAILS September 2006
B706-50
6.13 JOGGER UNIT (B513)

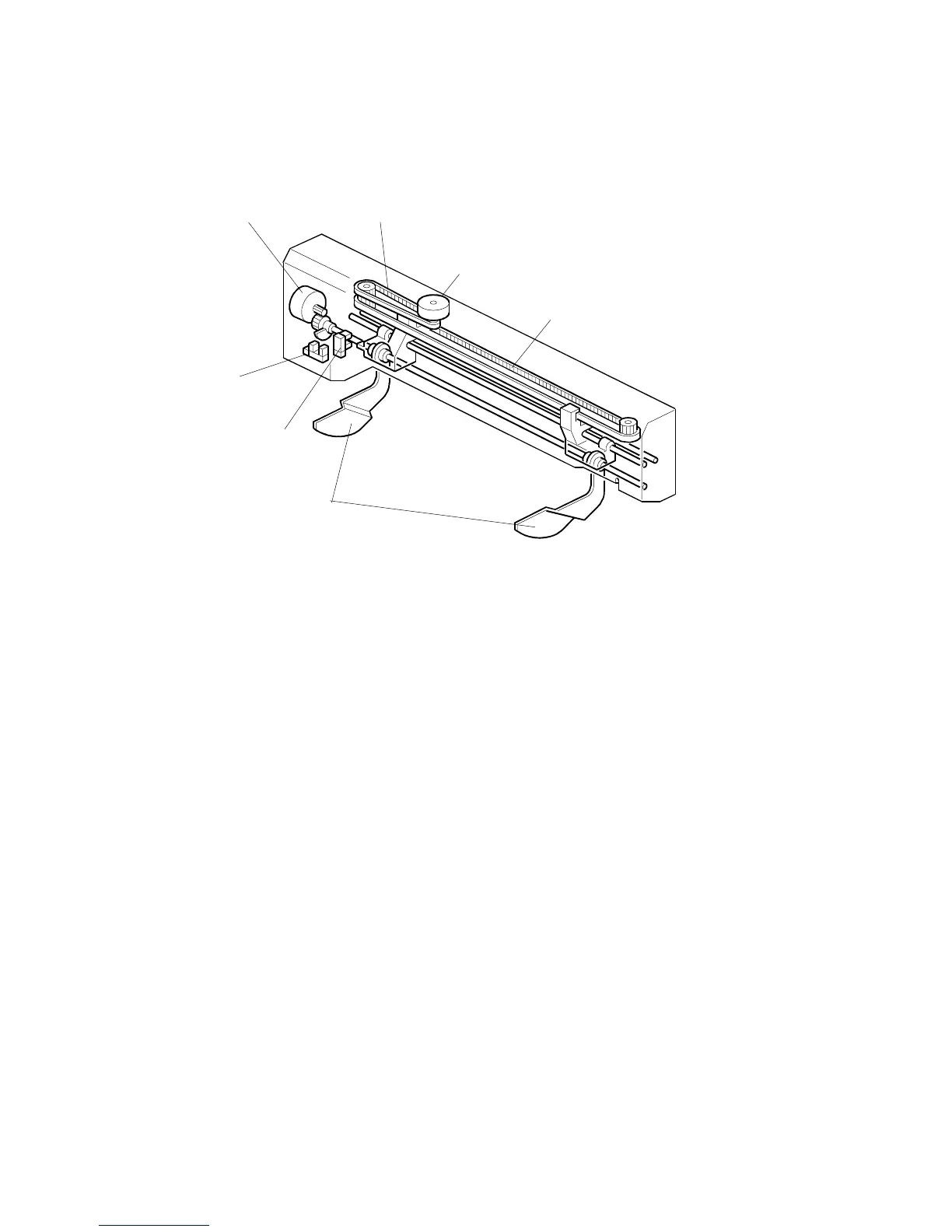

6.13.1 JOGGER UNIT MECHANICAL LAYOUT
1. Shift Jogger Fence Lift Motor
2. Shift Jogger Motor Timing Belt
3. Shift Jogger Motor
4. Shift Jogger Fence Timing Belt
5. Shift Jogger Fences
6. Shift Jogger HP Sensor
7. Shift Jogger Lift HP Sensor
B513D003.WMF
1
2
3
4
5
6
7
