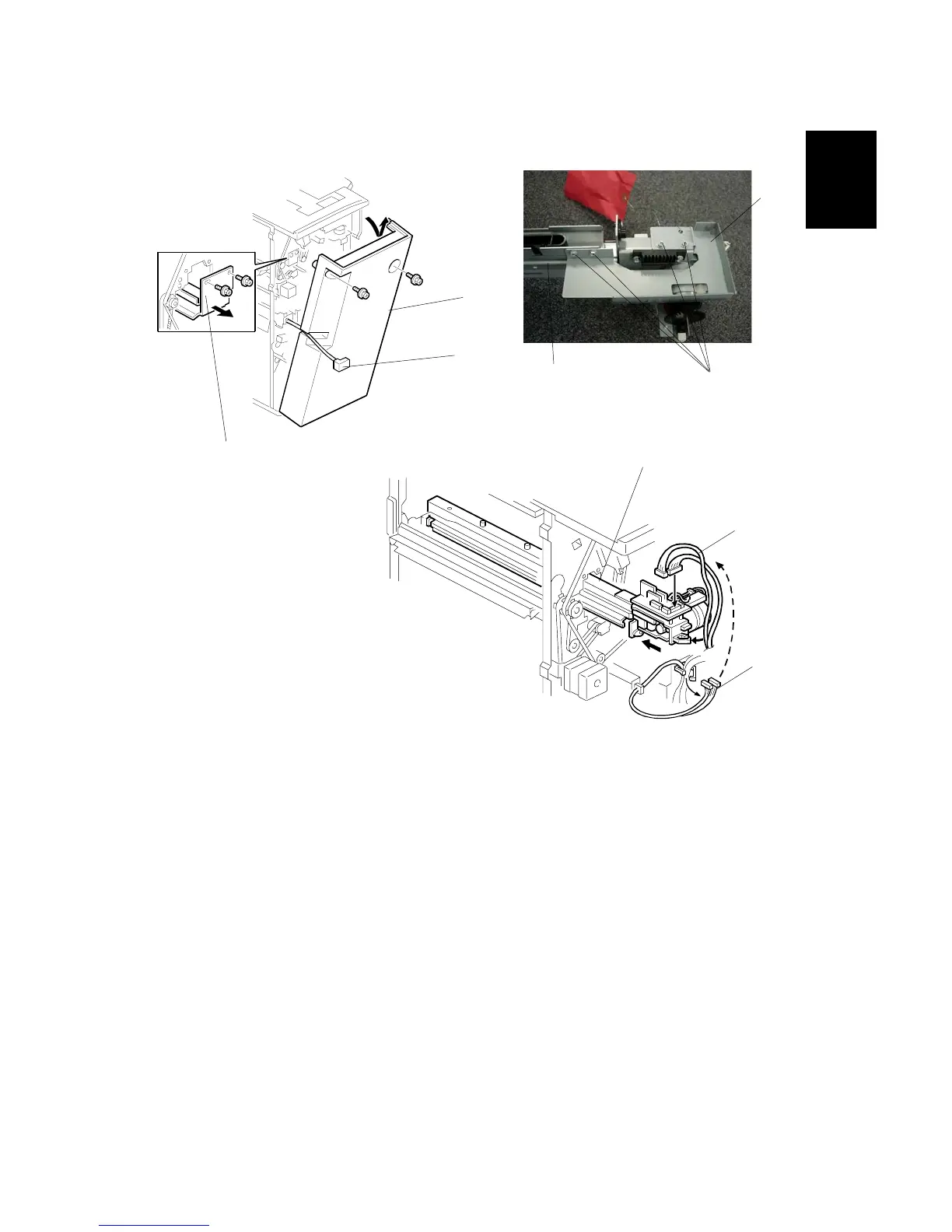

1.9.2 INSTALLATION
1. If the finisher is connected to the copier, disconnect the power connector [A]
and move the finisher away from the copier.
2. Remove the rear cover [B] ( x 2) and open the front door.
NOTE: At the bottom of the rear cover, make sure to disconnect the tabs that
attach the cover to the frame.
3. Remove the guide plate [C] ( x 2).
4. Remove the shipping retainer bracket [G] (screws [H]). Move the punching unit
[D] along its rails into the finisher. Make sure that the pin engages correctly at
the front and rear.
5. Connect and attach the punching unit [E] ( x 2, x 1).
• The cables [F] are coiled and attached to the PCB.
• Attach connectors to CN601 and CN602.
B702I102.WMF
B702I103.WMF
[A]
To Next Page
