PUNCH UNIT (B702) August, 2006
1-76
6. Attach the slide drive unit [A] to the finisher and connect it to the punching unit
( x 2,  x 1). Push in the slide drive unit at  when you attach screw .
7. Make sure that the punching unit moves freely and is not blocked by the screws.
8. Put the side-to-side detection unit [B] in the machine. Make sure that the two
pins are engaged correctly at the front.
9. Make sure that the side-to-side detection unit moves smoothly on its rails. If it
does not, make sure that the rails are aligned with their grooves.
10. Attach the side-to-side detection unit and connect it at the rear ( x 2,  x 1,
 x 1).
11. Pull the short connector out of the connector [C] then connect the cable ( x
1).
NOTE: This is the 3-pin connector.

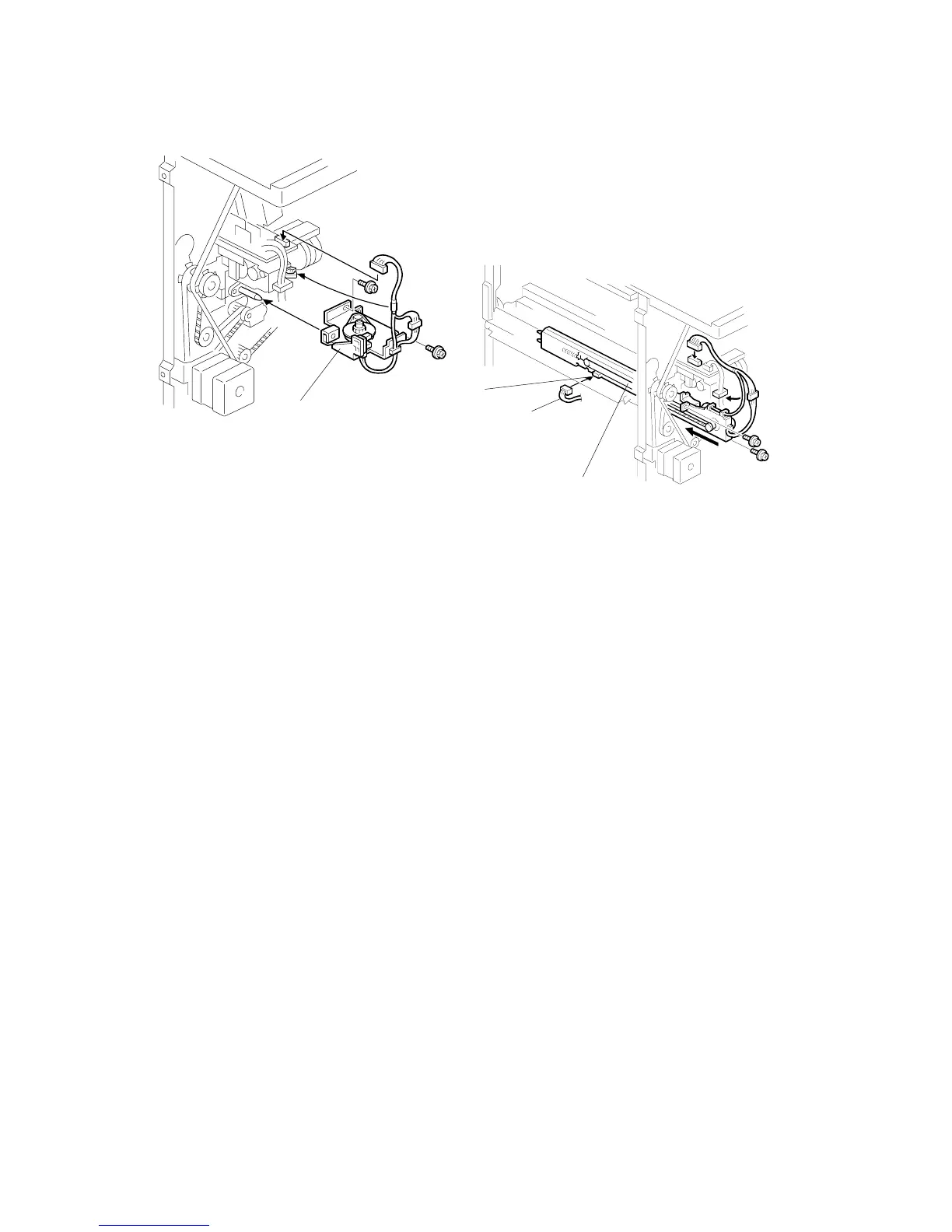

B702I104.WMF
B702I105.WMF
[A]
[B]
[C]


3-pin connector
