PAPER FEED (TRAYS 2, 3) August, 2006
3-122
3.12 PAPER FEED (TRAYS 2, 3)
3.12.1 PICK-UP, FEED, SEPARATION ROLLERS

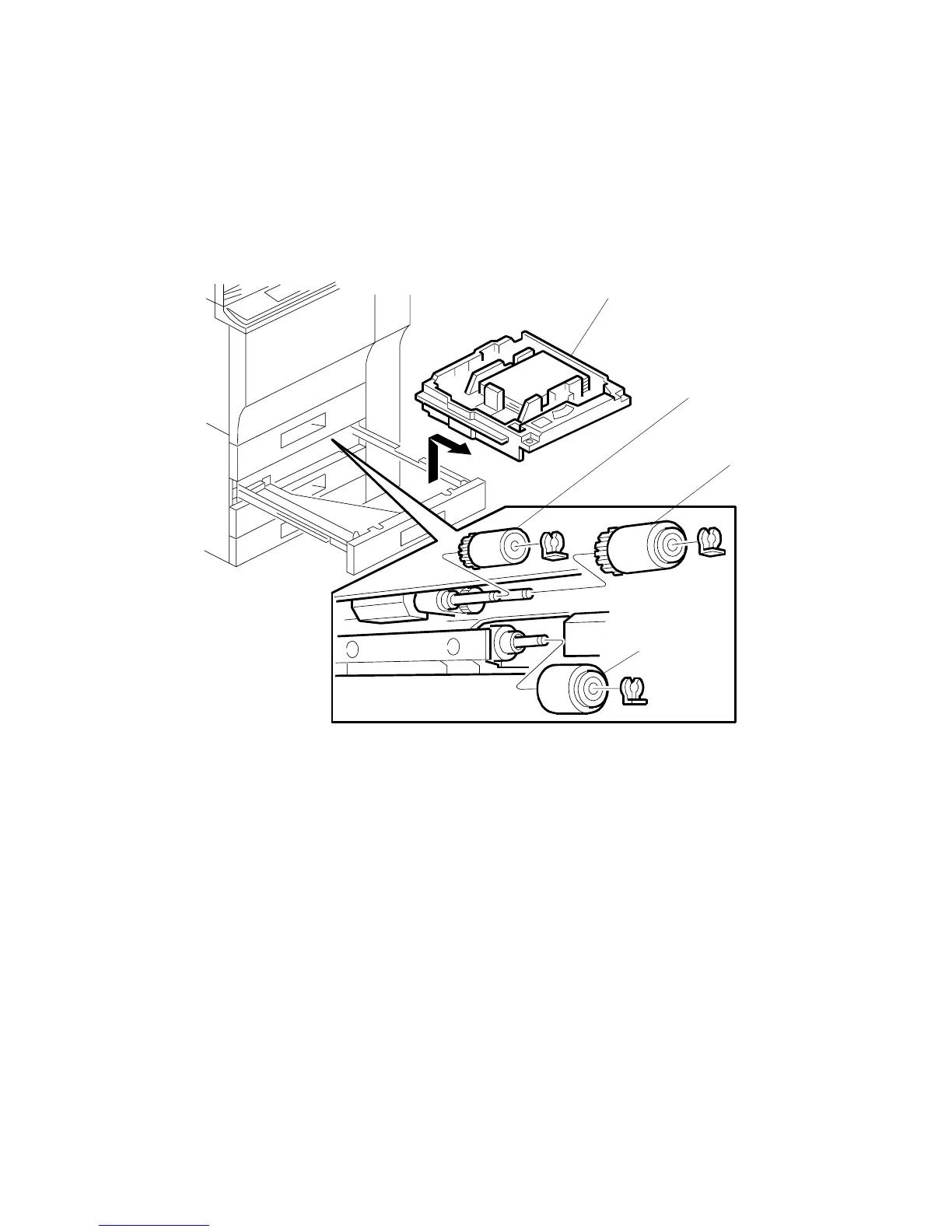

[A]: Remove the tray.
[B]: Feed roller ( x 1)
[C]: Pick-up roller ( x 1)
[D]: Separation roller ( x 1)
Important
• The operation of the FRR mechanisms for the tandem tray (Tray 1), universal
trays (Tray 2, Tray 3), bypass tray, and ARDF are similar. However, the only
rollers that are interchangeable are the tandem and universal tray rollers (Trays 1,
2, 3).
• Do not touch the surface of new rollers during replacement.
B132R601.WMF
[A]
