Docking the Finisher to the Copier

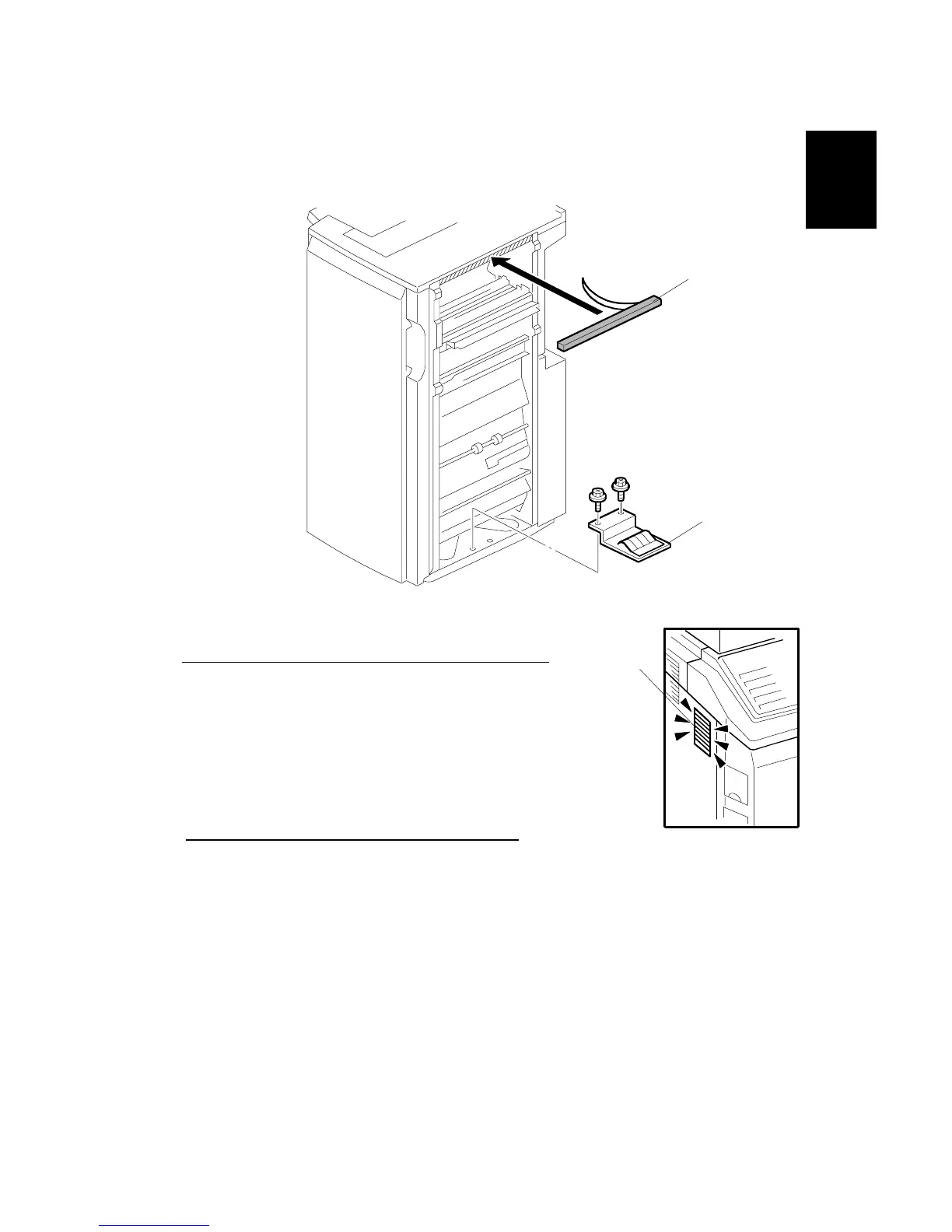

1. If you will not install the Cover Interposer B704:
• Remove the strip from the sponge cushion [A] and
attach it to the finisher, then go to Step 2.
Important! Do not put the sponge in a position that will
prevent air flow through the air duct [B] on the copier
after the finisher is connected to the copier.
• Use a short screwdriver to attach the grounding plate [C]
( x 2, M3 x 6).
If you will install the Cover Interposer B704:
• Do not attach the sponge cushion to the finisher. It must be attached to the
cover interposer.
• Do not attach the grounding plate [C] to the finisher. It must be attached to
the cover interposer.
• Install the interposer on the finisher before you dock the finisher to the copier.
(1.15: do the complete procedure.) Then come back to the procedure for
the B700/B701 finisher, and continue from ‘Attaching the Trays’.
