3000-SHEET FINISHER (B706), FINISHER ADAPTER (B698) August 2006
1-86

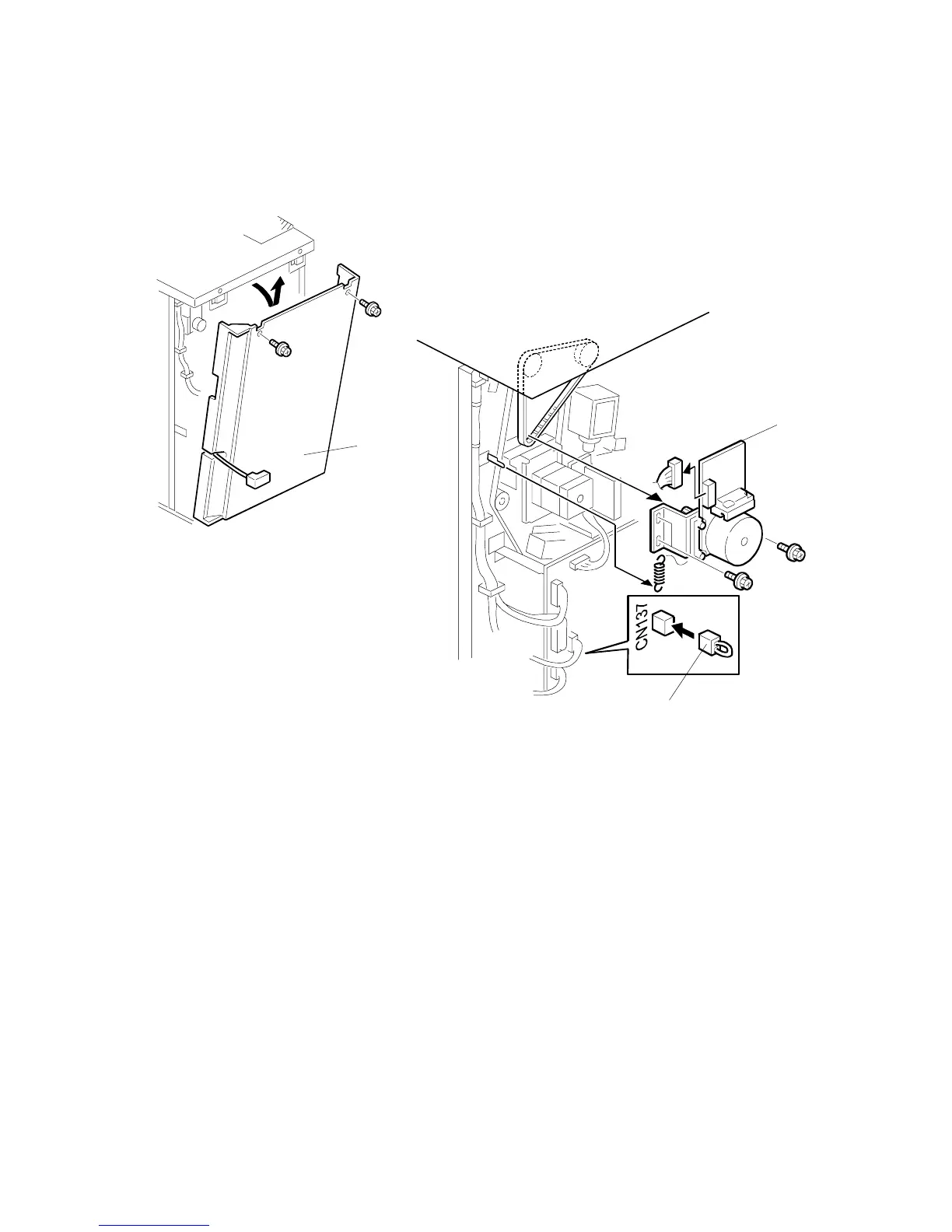

Finisher Adapter B698 Installation
1. Remove the finisher rear cover [A] ( x2).
2. Connect the short connector [B] to CN137 on the finisher main board.
3. Remove the upper transport motor mount [C] ( x1, x3, spring x1).
B698I102.WMF
B698I103.WMF
[A]
[C]
[B]
