Toshiba e-STUDIO4500c Service Manual

August 2006 3000-SHEET FINISHER (B706), FINISHER ADAPTER (B698)
1-87
Installation

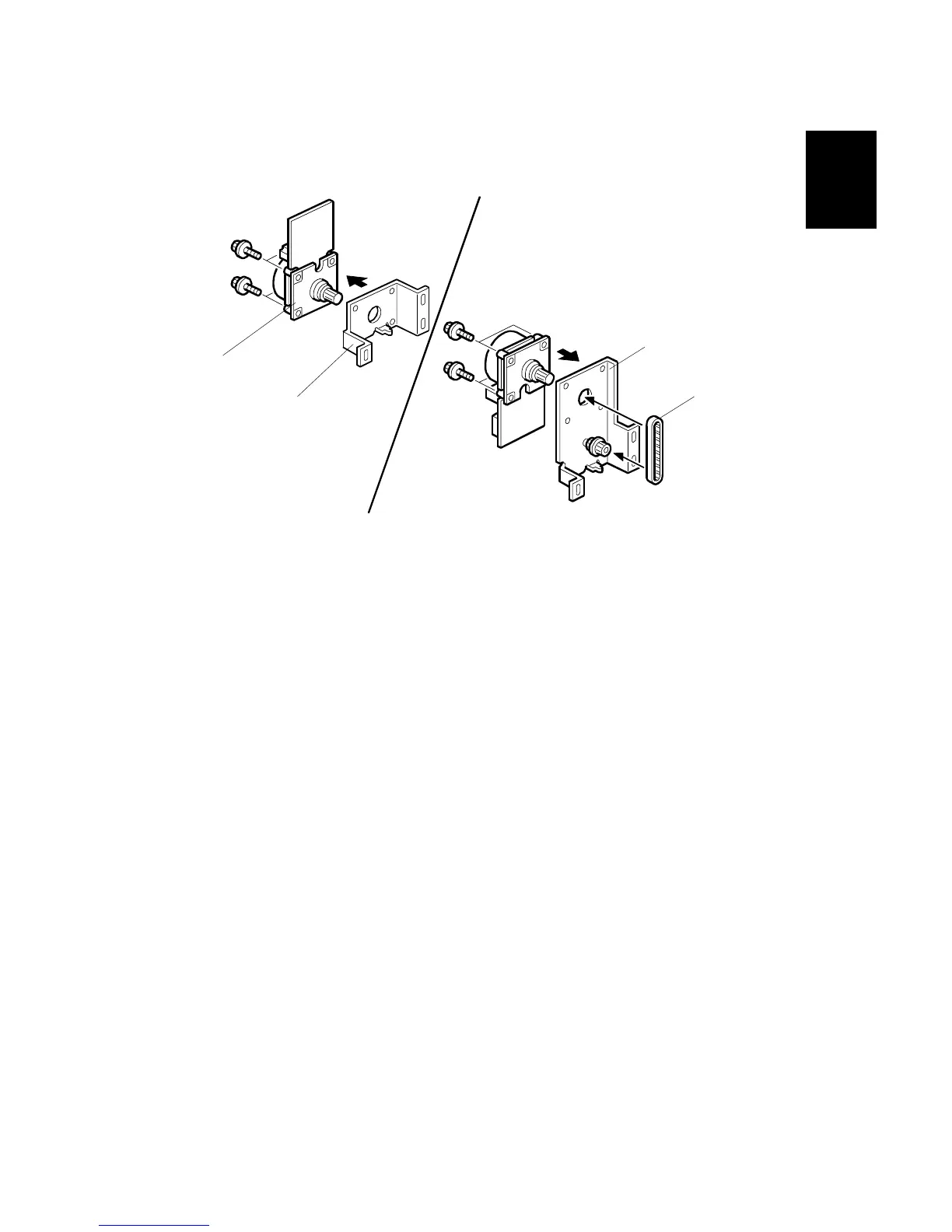

4. Remove the transport motor [A] from the original bracket [B] ( x4).
5. Set the motor on the new bracket [C] supplied with the Finisher Adapter B698.
6. Attach the timing belt [D].
7. Use the same screws to attach the transport motor to the new bracket ( x4).
B698I104.WMF
[A]
[B]
[C]
[D]
