3000-SHEET FINISHER (B706), FINISHER ADAPTER (B698) August 2006
1-88

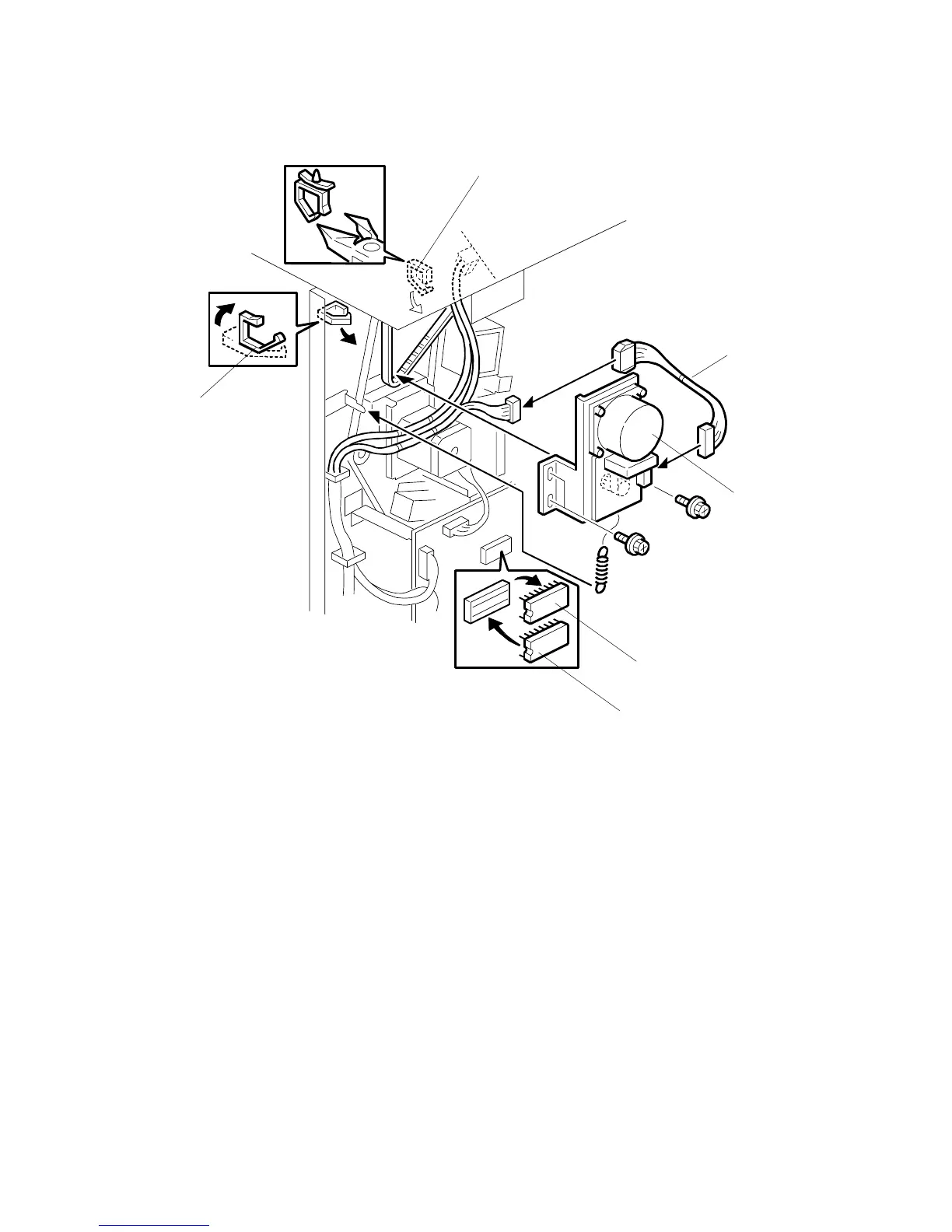

8. Remove the harness clamp [A].
9. Use wire cutters or radio pliers to remove harness clamp [B].
10. Attach the transport motor assembly [C]. ( x3,  x2, spring x1).
• The harness [D] is supplied with the Finisher Adapter B698.
• Attach the screws but do not tighten. Pull the spring slightly to apply tension,
then tighten the screws.
11. Remove EPROM [E] and replace it with EPROM [F] that is supplied with the
Finisher Adapter B698.
B698I105.WMF
[C]
[A]
[B]
[D]
[E]
[F]
